The ADUM1241ARSZ Dual Channel Digital Isolators are micro-power digital isolators based on Adeno Semiconductor's iCoupler® technology. These isolators combine high-speed CMOS with single-chip air core transformer technology to deliver superior performance characteristics over alternative devices such as optically coupled devices, while requiring less power than any existing isolation product. The family of dual-channel, 3.75kVrms digital isolators operate from supply voltages as low as 2.25V, consume a minimum typical current of less than 6A per channel at data rates of less than 20kbps, and consume a fraction of the power of comparable isolators at comparable data rates (up to 2Mbps).

Product Features

Technology: Magnetic Coupling

Type: General Purpose

Isolated Power: No

Number of channels: 2

Inputs - Side 1/Side 2: 1/1

Channel Type: Unidirectional

Voltage - Isolated: 3750 Vrms

Common Mode Transient Immunity (min): 25 kV/µs

Data Rate: 2 Mbps 2 Mbps

Propagation Delay tpLH / tpHL (max): 180ns, 180ns 180ns, 180ns

Pulse width modulation distortion (max): 8ns 8ns

Rise/fall time (typical) 2ns, 2ns

Voltage - Supply: 2.25V ~ 3.6V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

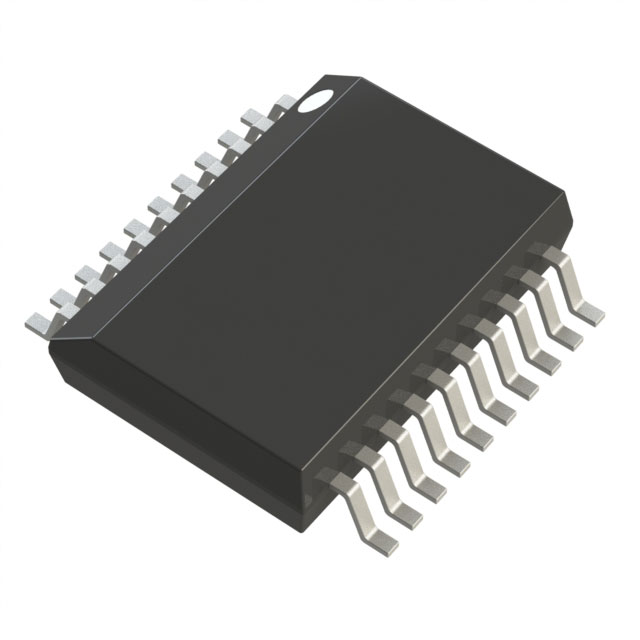

Package/Case: 20-SSOP (0.209 inches, 5.30 mm wide)

Delivery Range: 20-SSOP

Applications

● General purpose, low power, multi-channel isolation

● 1MHz low-power SPI

● 4mA to 20mA cyclic process control
