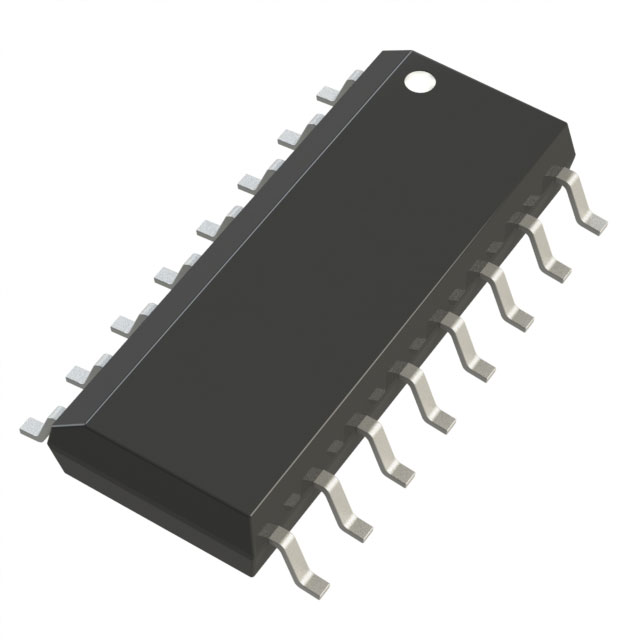

The ADUM140E1BRZ is a four-channel digital isolator incorporating iCoupler® technology. Combined with monolithic air-core transformer technology, these isolation elements have excellent performance characteristics that outperform optocoupler devices and other integrated couplers. Maximum propagation delay is 13 ns and pulse width distortion is less than 3 ns at an operating voltage of 5 V. Channels are tightly matched with a maximum matching time of 3.0 ns.

Product Characteristics

Technology: Magnetic Coupling

Type: General Purpose

Isolated power supply: None

Number of channels: 4

Inputs - Side 1/ Side 2: 4/0

Channel type: Unidirectional

Voltage - Isolated: 3000 Vrms

Common Mode Transient Immunity (min): 75 kV/µs

Data Rate: 150 Mbps 150 Mbps

Propagation Delay tpLH / tpHL (max): 13ns, 13ns 13ns, 13ns

Pulse Width Modulation Distortion (max): 3ns 3ns

Rise/fade time (typical): 2.5ns, 2.5ns 2.5ns, 2.5ns

Voltage - Supply: 1.7V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Case: 16-SOIC (0.154 inches, 3.90 mm wide)

Delivery Included: 16-SOIC

Applications

● General purpose multi-channel isolation

● Serial Peripheral Interface (SPI)/Data Converter Isolation

● Industrial fieldbus isolation
