The ADUM120N0BRZ is a dual-channel digital isolator using ADI's iCoupler® technology. These isolators combine high-speed, complementary metal-oxide-semiconductor (CMOS) and single-chip air-core transformer technology with outstanding performance characteristics over alternative devices such as optically coupled devices and other integrated couplers. These devices have a maximum propagation delay of 13 ns and pulse width distortion of less than 3 ns at 5 V. They have tight channel matching of 3.0 ns (maximum).

Benefits and Features

High common mode transient immunity: 100 kV/μs (typical)

High immunity to radiated and conducted noise

Low propagation delay

13 ns (max, 5 V)

15 ns (maximum, 1.8 V)

Data rate: 150 Mbps (min)

Safety and regulatory approvals

UL Listed: 1 minute 3000 V rms per UL 1577

CSA Component Acceptance Notification 5A

VDE Certificate of Conformity

din vde v 0884-11:2017-01

VIORM = 565 V peak

CQC certified to GB4943.1-2011

Low dynamic power consumption

1.8 V to 5 V level transitions

Operating temperature up to 125°C

Fail-safe high or low option

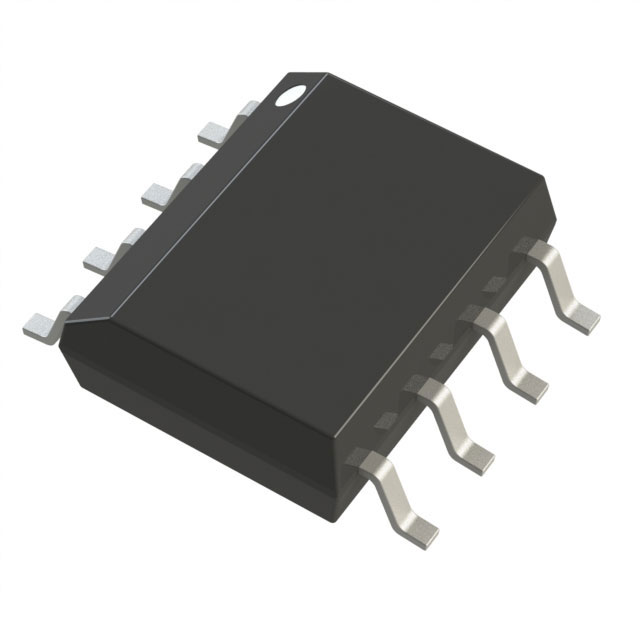

RoHS-compliant 8-pin SOIC package

Certified for automotive applications

Applications

General purpose multi-channel isolation

Industrial fieldbus isolation
