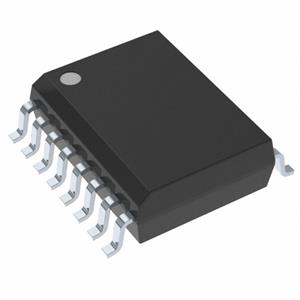

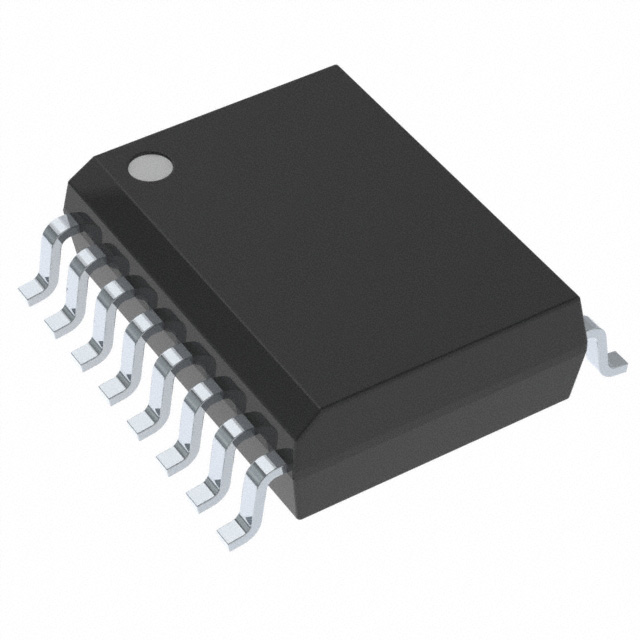

The ADUM5201ARWZ is a dual-channel digital isolator with an integrated isoPower® isolated DC/DC converter. Based on ADI's iCoupler® technology, this DC/DC converter is capable of isolating 5.0 V or 3.3 V voltages while providing up to 500 mW of adjustable isolated power. A separate isolated DC/DC converter is not required in low-power isolated designs.

Features

isoPower® Integrated Isolated DC/DC Converters

3 V or 5 V adjustable output

Up to 500 mW output power

Two isolated channels for DC to 25 Mbps (NRZ) signals

Schmitt trigger input

16-pin SOIC package with > 8mm creepage distance

Operating temperature up to: 105°C (max)

High common mode transient rejection: > 25 kV/μs

Applications

- RS-232/RS-422/RS-485 transceivers

- Industrial fieldbus isolation

- Power start-up and gate drive

- Isolated sensor interfaces

- Industrial PLCs
