The ADS8167IRHBR is a 16-bit, 8-channel, high-precision successive approximation register (SAR) analogue-to-digital converter (ADC) that is powered by a single 5V supply and has a total throughput of 500kSPS.

The input multiplexer supports longer build-up times, making it easier to drive analogue inputs. The outputs of the multiplexer and ADC analogue inputs are available as device pins. This configuration allows one ADC driver op amp to be used for all eight analogue inputs of the multiplexer.

The ADS8167IRHBR has a digital window comparator with programmable high and low alarm thresholds for each analogue input channel. The single op-amp solution with programmable alarm thresholds enables low-power, low-cost applications with the smallest form factor.

Specification

Product Category: Analogue to Digital Converters - ADCs

Family: ADS8167

Mounting Style: SMD/SMT

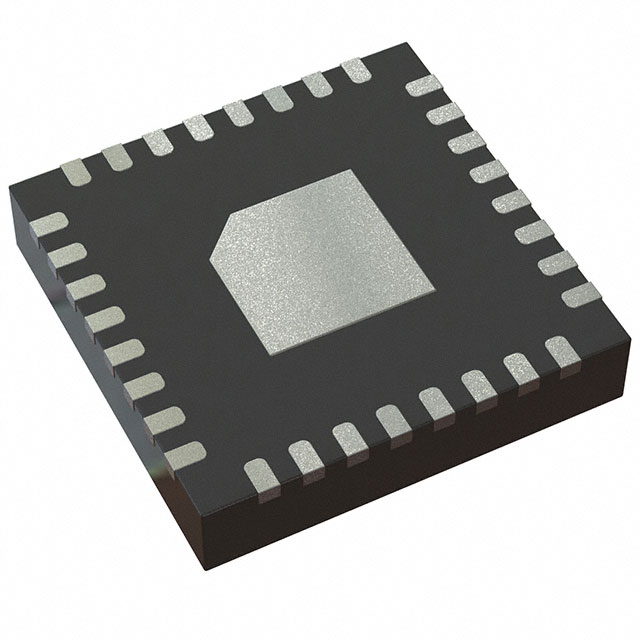

Package / Case: VQFN-32

Resolution: 16 bit

Number of channels: 8 Channel

Interface type: SPI

Sample ratio: 500 kS/s

Input type: Pseudo-Differential/Single-Ended

Architecture: SAR

Analogue supply voltage: 5 V

Digital supply voltage: 3 V

SNR - Signal-to-Noise Ratio: 93.6 dB

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

DNL - Differential Non-Linearity: 0.2 LSB

Features: Comparator, Enhanced SPI

Gain Error: 0.002 %/FSR

INL - Integral Non-Linearity: 0.35 LSB

Humidity Sensitivity: Yes

Number of Converters: 8 Converter

Product Type: ADCs - Analog to Digital Converters

Reference Type: External

SFDR - Spurious Free Dynamic Range: 112 dB

Shutdown: No Shutdown

SINAD - Signal-to-noise and distortion ratio: 92 dB

Factory Package Quantity: 3000

Sub Category: Data Converter ICs

THD - Total Harmonic Distortion: - 110 dB

Type: Precision

Applications

- Analogue input modules

- Multi-parameter patient monitors

- Anaesthetic drug delivery systems

- LCD testing

- Data centre interconnections (metro)

- Optical modules
