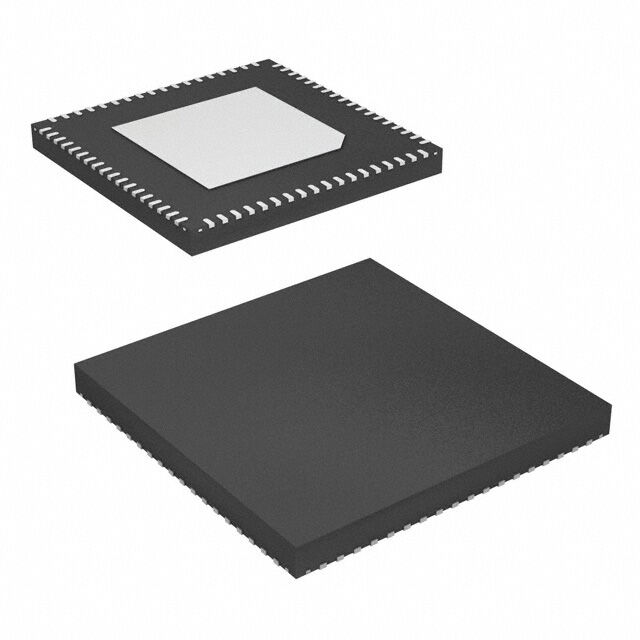

For picture reference, please see the specifications
< >

Commodity Model:AD9467BCPZ-200

Trade Name:Analogue To Digital Converters - ADC

Brand:ADI

Particular Year:25+

Package:LFCSP-72

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD9467BCPZ-200
Package
LFCSP-72
Describe
16-bit, 200 MSPS, single-channel analog-to-digital converter (ADC)

Product Description

The AD9467BCPZ-200 is a 16-bit, single-chip, intermediate frequency (IF) sampling analog-to-digital converter (ADC), optimized for high performance, wide bandwidth and ease of use. This product operates at a conversion rate of 200 MSPS and is designed for wireless receivers, instruments and test equipment that require high dynamic range.


Performance parameters

Resolution: 16 bits

Number of channels: 1 Channel

Interface type: SPI

Sampling ratio: 200 MS/s

Input type: Differential

Structure: Pipeline

Analog power supply voltage: 1.8V, 3.3V

Digital power supply voltage: 1.8V

SNR - Signal-to-noise Ratio: 76.4 dBFS

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Packaging/Cabinet: LFCSP-72


In addition, the AD9467BCPZ-200 requires power supply of 1.8V and 3.3V, as well as low-voltage differential input clock signals, in order to fully leverage its working performance. For most applications, there is no need for an external reference voltage source or drive device. The data output is LVDS compatible (ANSI-644 compatible), and includes a way to reduce the total current required for short traces.


Typical applications

Multi-carrier and multi-mode mobile phone receiver

Antenna array positioning

Linearization of power amplifiers

Broadband wireless

Radar

Infrared imaging

Communication instruments


Associated Products

Model

Brand

Package

Quantity

Describe

AD9626BCPZ-210

ADI

LFCSP-56

3000

12-bit, 210 MSPS, 1.8V analog-to-digital converter (ADC)

AD9272BSVZ-80

ADI

TQFP-100

2500

Eight-channel, 80 MSPS, 12-bit analog-to-digital converter (ADC)

AD9265BCPZ-125

ADI

LFCSP-48

3000

16-bit, 125 MSPS, 1.8V analog-to-digital converter (ADC)

AD9265BCPZ-105

ADI

LFCSP-48

3000

16-bit, 105 MSPS, 1.8V analog-to-digital converter (ADC)

AD9467BCPZ-250

ADI

LFCSP-72

3000

16-bit, 250 MSPS, single-channel analog-to-digital converter (ADC)

AD90540703J44

ADI

JLCC-44

3000

8-bit, 200 MSPS, single-channel analog-to-digital converter (ADC)

AD9273BBCZ-50

ADI

CSPBGA-144

2000

Eight-channel, 50 MSPS, 12-bit analog-to-digital converter (ADC)

AD9255BCPZ-125

ADI

LFCSP-48

3000

14-bit, 125 MSPS, 1.8V single-channel analog-to-digital converter (ADC)

AD9251BCPZ-80

ADI

LFCSP-64

3000

14-bit, 80 MSPS, 1.8V, dual-channel analog-to-digital converter (ADC)

AD9251BCPZ-65

ADI

LFCSP-64

3000

14-bit, 65 MSPS, 1.8V, dual-channel analog-to-digital converter (ADC)
