Service Telephone:86-755-83294757
Trade Name:Analogue To Digital Converters - ADC
Brand:ADI
Particular Year:25+

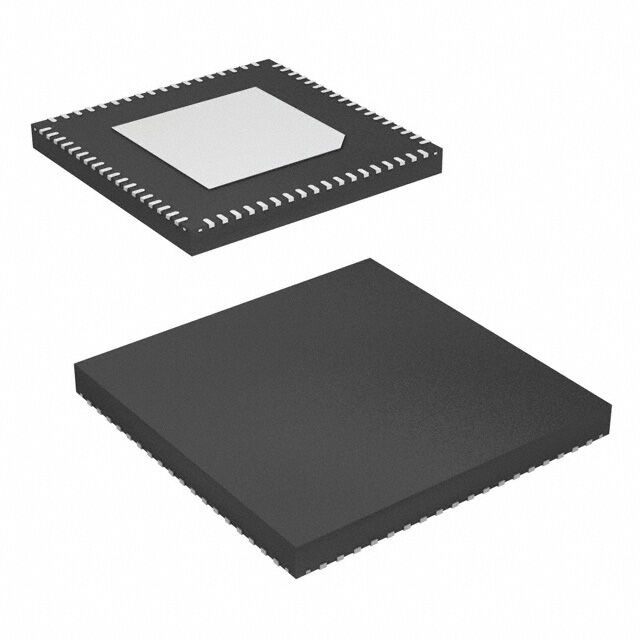

Package:LFCSP-72
Delivery Date:New and original
Stock: 3000pcs
The AD9467BCPZ-250 is a 16-bit, 250 MSPS, single-channel analog-to-digital converter (ADC) optimized for high performance, wide bandwidth and ease of use. This product is designed for wireless receivers, instruments and test equipment that require high dynamic range. The following are its core features:
SNR: 75.5 dBFS (up to 210 MHz, 250 MSPS)
SFDR: 90 dBFS (up to 300 MHz, 250 MSPS)
SFDR (at 170 MHz, 250 MSPS)
92 dBFS (−1 dBFS)
100 dBFS (-2 dBFS)
Jitter: 60 fs rms
Outstanding linearity (250 MSPS)
Differential nonlinearity (DNL) : ±0.5 LSB (typical value)
Integral nonlinearity (INL) : ±3.5 LSB (typical value)
In addition, the AD9467BCPZ-250 requires power supply of 1.8V and 3.3V, as well as low-voltage differential input clock signals, in order to fully leverage its working performance. For most applications, there is no need for an external reference voltage source or drive device. The data output is LVDS compatible (ANSI-644 compatible), and includes a way to reduce the total current required for short traces. The AD9467BCPZ-250 is packaged in a 72-pin LFCSP lead-free package and has a rated temperature range of -40 °C to +85°C in the industrial temperature range.
Typical applications
Multi-carrier and multi-mode mobile phone receiver
Antenna array positioning
Linearization of power amplifiers
Broadband wireless
Radar
Infrared imaging
Communication instruments
Model
Brand
Package
Quantity
Describe
ADI
LFCSP-48
3000
14-bit, 125 MSPS, 1.8V single-channel analog-to-digital converter (ADC)
ADI
LFCSP-64
3000
14-bit, 80 MSPS, 1.8V, dual-channel analog-to-digital converter (ADC)
ADI
LFCSP-64
3000
14-bit, 65 MSPS, 1.8V, dual-channel analog-to-digital converter (ADC)
