AI Processor Chip

Resistor network

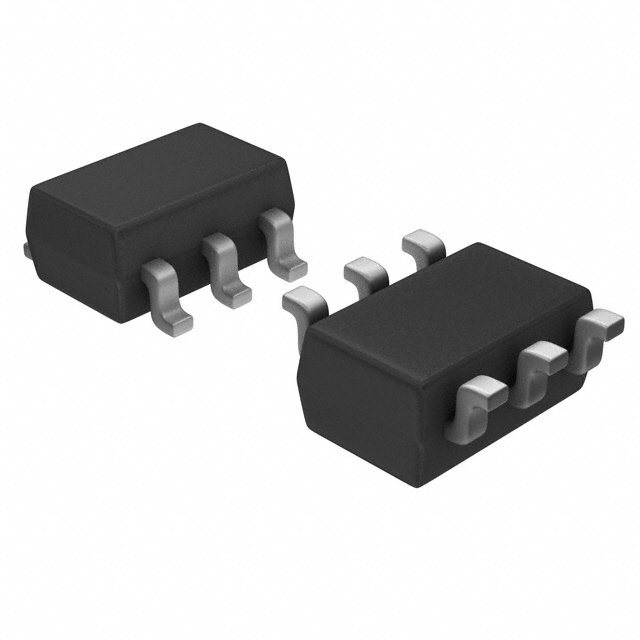

For picture reference, please see the specifications
< >

Commodity Model:ADS1000A0IDBVR

Trade Name:ADS1000A0IDBVR

Data Manual:ADS1000A0IDBVR.pdf

Brand:TI

Particular Year:23+

Package:SOT-23-6

Delivery Date:New and Original

Stock: 5500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
ADS1000A0IDBVR
Package
SOT-23-6
Describe
12-bit, 128SPS, single-channel Δ-Σ ADC with PGA, oscillator, and I2C

Product Description

The ADS1000A0IDBVR is an I2C-compatible serial interface analog-to-digital (A/D) converter with differential inputs and 12-bit resolution in a SOT23-6 miniature package. The ADS1000 utilizes a single 2.7V to 5.5V power supply for proportional conversion using the power supply as the reference voltage.


The ADS1000A0IDBVR has a conversion rate of 128 samples per second (SPS). The on-board programmable gain amplifier (PGA) has a gain of up to 8, allowing high-resolution measurements of smaller signals. In single-conversion mode, the ADS1000 automatically powers down after a conversion, greatly reducing current consumption during idle periods.


The ADS1000A0IDBVR is designed for applications where space and power consumption are key considerations. Typical applications include portable instruments, consumer products, and voltage monitoring.


Features

Complete 12-bit data acquisition system in a miniature SOT-23 package

Low current consumption: only 90µA

Integral nonlinearity: 1LSB maximum

Single-cycle conversion

Programmable gain amplifier gain = 1, 2, 4, or 8

128SPS data rate

I2C interface with two available addresses

Power supply 2.7V to 5.5V

Pin and software compatible with 16-bit ADS1100


Product Applications

Voltage monitors

Battery management

Industrial process control

Consumer products

Temperature measurement
