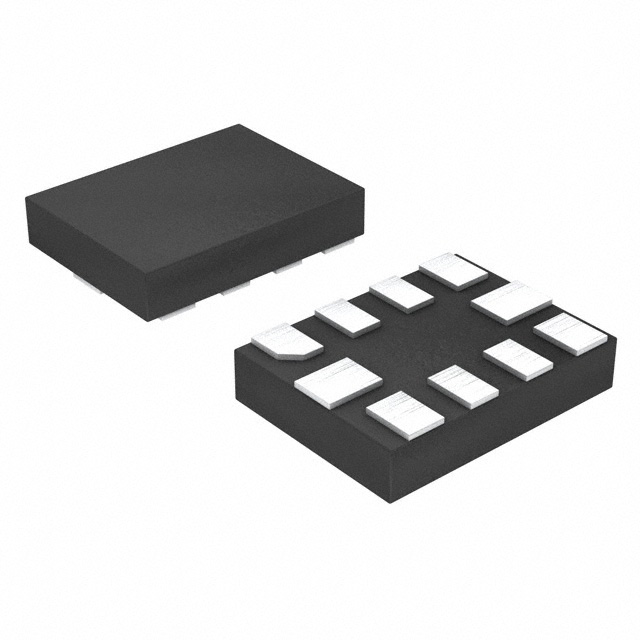

The TLA2024IRUGR is an easy-to-use, low-power, 12-bit Δ-Σ analog-to-digital converter (ADC) for any type of system monitoring application, such as power supply or battery voltage monitoring, current sensing, or temperature measurement.

Features

- Industry's lowest-cost 12-bit Δ-Σ ADCs

- Ultra-small X2QFN package: 2mm × 1.5mm

- Highly integrated:

- 4 single-ended or 2 differential inputs make the TLA2024 the industry's highest channel density ADC (0.75mm² per channel)

- PGA (TLA2022 and TLA2024 only)

- Voltage references

- Oscillator

- Low current consumption: 150µA

- Wide supply voltage range: 2V to 5.5V

- Programmable data rate: 128SPS to 3.3kSPS

- I2C™ compatible interface:

- Supports standard and fast modes

- Three pin selectable I2C addresses

- Operating temperature range: -40°C to +85°C

Applications

- Personal electronics:

- TVs, tablets, cell phones

- Wearable devices

- Drones, toys

- Home and kitchen appliances

- Building Automation:

- HVAC, smoke detectors

- Battery voltage and current monitoring

- Temperature sensing

- Battery powered, portable meters
