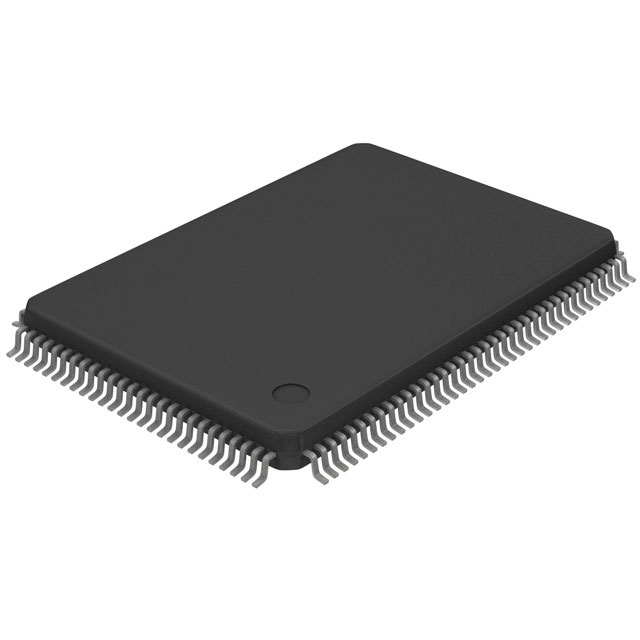

The MSP430F67651AIPEUR microcontroller (MCU) family is part of the MSP430™ power measurement and monitoring MCU family for power measurement and monitoring applications such as smart grid and building automation. Up to seven independent 24-bit sigma-delta ADCs provide more than 0.1% accuracy. The devices integrate a high-performance MSP430 processor and 32-bit multiplier to perform all measurement calculations. The family includes up to 512KB of flash memory, 32KB of RAM, and an LCD controller supporting up to 320 segments.

Product Attributes

Core processor: MSP430 CPUXV2

Core specification 16-bit

Speed: 25 MHz

Connectivity: I²C, IrDA, LINbus, SPI, UART/USART

Peripherals: undervoltage detection/reset, DMA, LCD, POR, PWM, WDT, 6x24b sigma-delta converter.

Number of inputs/outputs: 90

Program memory capacity 128KB (128K x 8)

Program memory type: Flash

RAM size: 16K x 8

Supply Voltage (Vcc/Vdd): 1.8V ~ 3.6V 1.8V ~ 3.6V

Data Converter: A/D 8x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/case: 128-LQFP

Delivery incl.: 128-LQFP (20x14)

Applications

● Three-phase electronic energy meters

● Utility metering

● Energy monitoring
