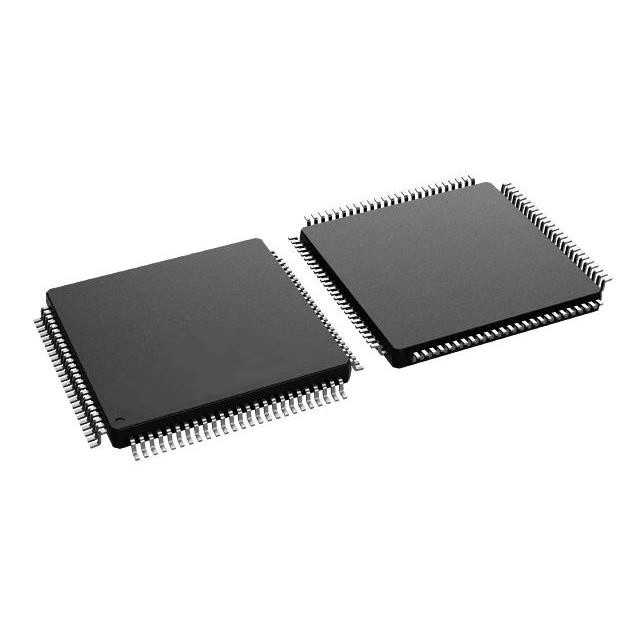

For picture reference, please see the specifications
< >

Commodity Model:MSP430F5359IPZR

Trade Name:16-Bit Microcontrollers - MCU

Brand:TI

Particular Year:25+

Package:LQFP-100

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
MSP430F5359IPZR
Package
LQFP-100
Describe
With 512 KB of flash memory, 66 KB SRAM 16-bit microcontroller, 20 MHZ

Product Description

The MSP430F5359IPZR is a 16-bit microcontroller featuring 512KB flash memory, 66KB SRAM, 12-bit ADC, 12-bit DAC, comparator, DMA and UART/SPI/I2C characteristics, with a main frequency up to 20MHz. The MSP430F5359IPZR microcontroller configuration includes 4 16-bit timers, 1 high-performance 12-bit ADC, 3 UScis, 1 hardware multiplier, DMA, 1 RTC module with alarm function, 1 comparator, USB 2.0 and up to 74 I/ OS Pin.


Main specifications

Product: MSP430F5359IPZR

Core processor: MSP430 CPUXV2

Kernel specification: 16 bits

Speed: 20MHz

Connection capabilities: I2C, IrDA, SCI, SPI, UART/USART

Peripherals: Undervoltage detection/reset, DMA, POR, PWM, WDT

I/O count: 74

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 66K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 3.6V

Data converter: A/D 16x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Supplier device packaging: 100-LQFP (14x14)


The MSP430F5359IPZR microcontroller is widely used in the following fields, including:

• Analog and digital sensor systems

• Digital motor controls

• Remote control

• Thermostat

• Digital timer

• Handheld instrument
