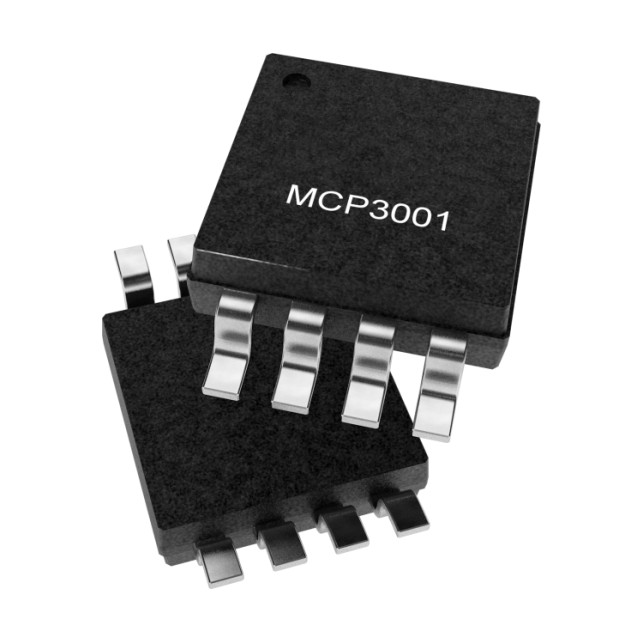

For picture reference, please see the specifications
< >

Commodity Model:MCP3001-I/MS

Trade Name:Analogue To Digital Converters - ADC

Brand:Microchip

Particular Year:25+

Package:MSOP-8

Delivery Date:New and original

Stock: 3500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
MCP3001-I/MS
Package
MSOP-8
Describe
10-bit, 200kSPS, single-channel analog-to-digital converter (ADC)

Product Description

The MCP3001-I/MS is a 10-bit analog-to-digital converter (ADC) that combines high performance and low power consumption in a small package, making it highly suitable for embedded control applications. The MCP3001-I/MS adopts a sequential approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing the addition of 10-bit ADC functionality to any PIC® microcontroller. The MCP3001-I/MS features 200k sampling per second, one input channel, low power consumption (5nA typical standby, 400μA typical active), and is packaged in an 8-pin MSOP.


Technical specifications

Number of digits: 10

Sampling rate (per second) : 200k

Input number: 1

Input type: pseudo-difference

Data interface: SPI

Configuration: S/H-ADC

Ratio - S/H:ADC: 1:1

A/D converter number: 1

Architecture: SAR

Reference type: External

Voltage - Power supply, analog: 2.7V to 5.5V

Voltage - power supply, number: 2.7V - 5.5V

Feature: -

Operating temperature: -40°C to 85°C

Packaging/Housing: 8-MSOP

In addition, the applications of MCP3001-I/MS include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCS, motor control, robotics, industrial automation, intelligent sensors, portable instruments and home medical equipment.
