Trade Name:MAX17313X
Data Manual:MAX17313X.pdf
Brand:Maxim
Particular Year:23+

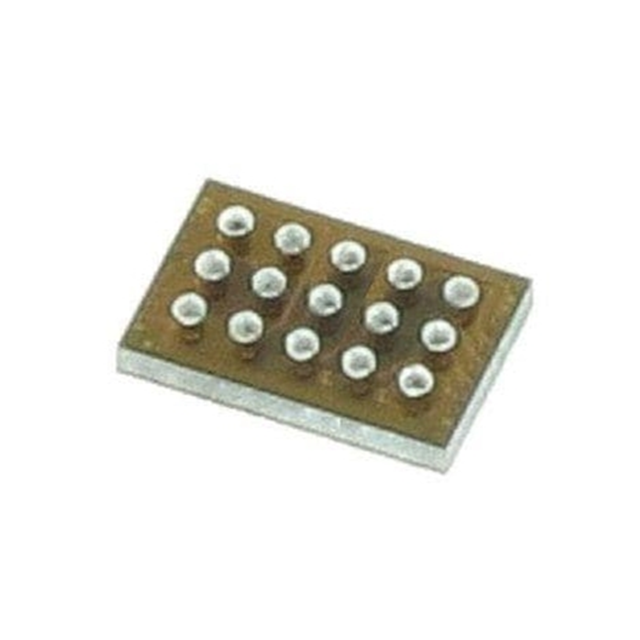

Package:15-WLP
Delivery Date:New and Original
Stock: 1000pcs
The MAX17313X is a 24μA IQ standalone battery-side gauge IC with protector and optional SHA-256 safety certification for single-cell lithium-ion/polymer batteries.The IC monitors battery voltage, current, temperature, and status, and utilises an external high-side N-FET to provide overvoltage/undervoltage, overcurrent, short-circuit, overheat/under-temperature, and over-charging protections as well as to provide charging solutions,... Ensure Li-ion/polymer batteries operate under safe conditions and extend battery life.
Product Attributes
Function: Battery Meter
Battery Chemistry: Li-Ion/Polymer
Number of Cells: 1
Fail-safe: Over-current, over-temperature, over-voltage, short-circuit
Interface: I²C
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package/Housing: 15-WFBGA, WLBGA
Supplier Device Package: 15-WLP (1.68x2.45)
Applications
● Smart phones, tablets, 2-in-1 laptops
● Smart watches and wearable devices
● Medical devices, health and fitness monitors
● Digital cameras, video and sports camcorders
● Handheld computers and terminals
● Handheld radios
● Home and building automation, sensors
● Smart batteries
