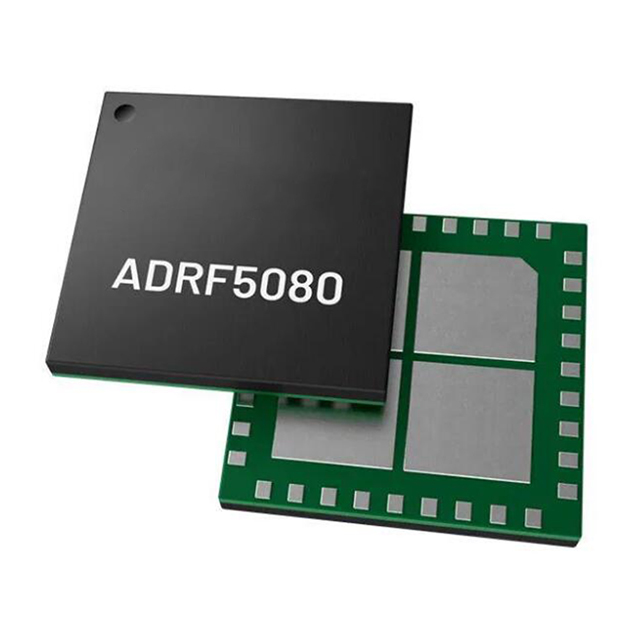

ADRF5080BCCZN is a reflective, SP8T switch manufactured in the silicon process. The ADRF5080 operates from 100 MHz to 20 GHz with an insertion loss of lower than 2.0 dB and an isolation higher than 40 dB. The device has an RF input power handling capability of 30 dBm continuous wave power for the insertion loss path.

Product Features

Ultrawideband frequency range: 100 MHz to 20 GHz

Low insertion loss

1.3 dB up to 6 GHz

1.6 dB up to 12 GHz

2.0 dB up to 20 GHz

High isolation

46 dB up to 6 GHz

45 dB up to 12 GHz

40 dB up to 20 GHz

High input linearity

P0.1dB: 33 dBm typical

IP3: 55 dBm typical

High RF power handling

Insertion loss path: 33 dBm

Hot switching: 30 dBm

Fast switching on and off time: 55 ns

0.1 dB settling time (50% VCTRL to 0.1 dB final RFOUT): 100 ns

Single-supply operation capability

All off state control

Logic select control

No low frequency spurs

36-terminal, 5.50 mm x 5.50 mm LGA package

Applications

Test and instrumentation

Military radios, radars, and electronic counter measures (ECMs)

Microwave radios and very small aperture terminals (VSATs)
