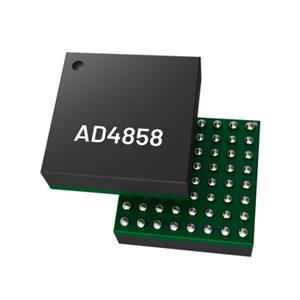

The AD4858BBCZ is a fully buffered, 8-channel synchronous sampling, 20-bit, 1 MSPS data acquisition system (DAS) with differential, wide common-mode range inputs.The AD4858 is powered by a low 5 V supply, a flexible input buffer supply, and uses a precision, low-drift internal reference and reference buffer, which allows for independently configurable SoftSpan ranges for each channel to match the Native application signal swing to minimise additional external signal conditioning. To further maximise single-conversion dynamic range, the AD4858 uses Seamless High Dynamic Range (SHDR) technology. When this technology is enabled, the channel's input signal path gain is automatically optimised on a sample-by-sample basis to minimise converter noise on a per-sample basis without compromising linearity.

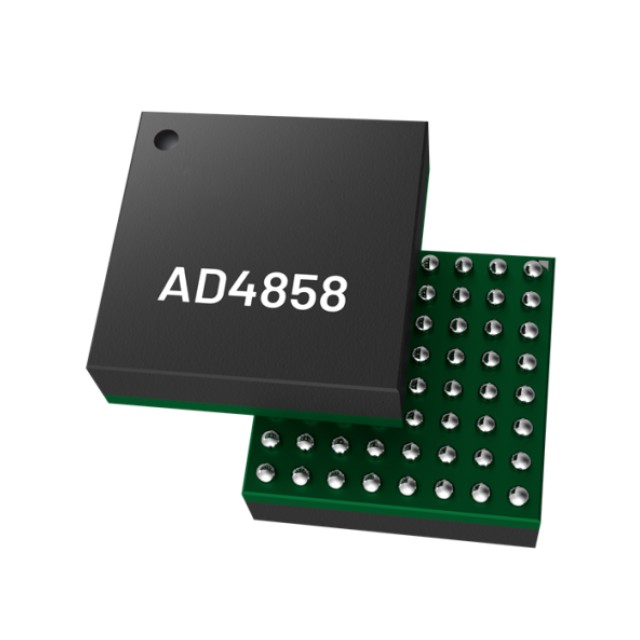

The AD4858BBCZ features a 7.00 mm × 7.00 mm, 64-ball, ball grid array (BGA), including all critical power and reference bypass capacitors, minimising the footprint and component count of the overall solution and reducing sensitivity to the application's printed circuit board (PCB) layout. It operates over the -40°C to +125°C temperature range.

Product Features

Complete 20-bit data acquisition system

8 internally buffered channels for simultaneous sampling

1 MSPS throughput per channel

Differential, wide common mode range inputs

Typical input leakage current ±75 pA at 25°C

Full-scale input step settling time < 300 ns

Integrated reference and reference buffer (4.096 V)

Integrated power supply decoupling capacitors

45 mW per channel at 1 MSPS, power varies with throughput

Minimal external signal conditioning

Seamless high dynamic range

Per-sample, per-channel auto gain range

Holds ppm-level INL

SoftSpan input range per channel, bipolar or unipolar

±40 V, ±25 V, ±20 V, ±12.5 V, ±10 V, ±6.25 V, ±5 V, ±2.5 V

0 V to 40 V, 25 V, 20 V, 12.5 V, 10 V, 6.25 V, 5 V, 2.5 V

Rail-to-rail input overdrive tolerance

High Performance

INL: ±160 μV typical (±40 V range)

SNR: 97.2 dB single conversion typical (±40 V range)

DR: 111.4 dB single-conversion typical (±40 V range)

Total Harmonic Distortion -117 dB typical (±40 V range)

CMRR: 120 dB typical

Digital Flexibility

SPI CMOS (0.9 V to 5.25 V) and LVDS serial inputs and outputs

Optional 24-bit digital average oversampling

Selectable offset, gain, and phase correction

7.00 mm × 7.00 mm, 64-ball BGA Full Solution Substrate

Applications

Automated test equipment

Avionics and aerospace

Instrumentation and control systems

Semiconductor manufacturing

Test and Measurement
