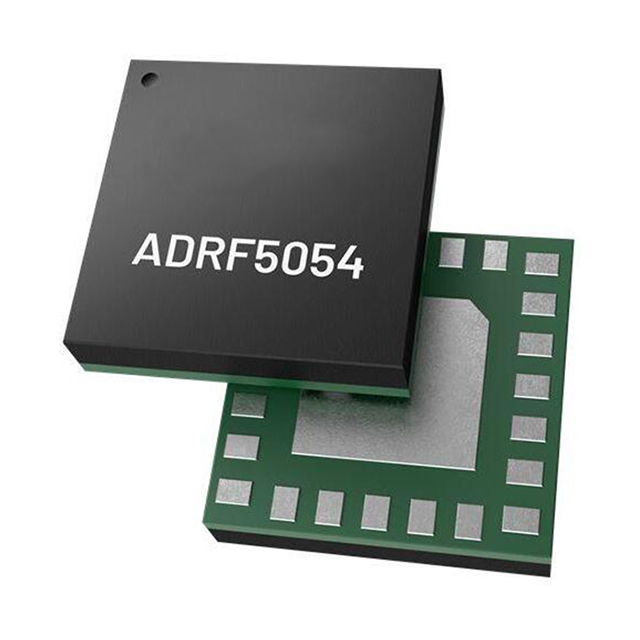

ADRF5054BCCZN is a reflective, SP4T switch manufactured in a silicon process. The ADRF5054 operates from 1 GHz to 60 GHz. The switch has a low insertion loss of 2.2 dB and 3.2 dB with 33 dB and 28 dB isolation at 40 GHz and 60 GHz, respectively.

Product Features

Ultrawideband frequency range: 1 GHz to 60 GHz

Low insertion loss

2.2 dB typical up to 40 GHz

2.8 dB typical up to 55 GHz

3.2 dB typical up to 60 GHz

High isolation

33 dB typical up to 40 GHz

28 dB typical up to 55 GHz

28 dB typical up to 60 GHz

High input linearity

P0.1dB: 25 dBm typical

IP3: 47 dBm typical

High RF power handling

Through path: 24 dBm

Hot switching path: 24 dBm

CMOS-/LVTTL-compatible

No low frequency spur

Fast RF switching time: 25 ns

RF settling time (50% VCTRL to 0.1 dB of RFOUT): 35 ns

Single-supply operation capability (VDD = 3.3 V, VSS = 0 V)

24-terminal, 3 mm × 3 mm, RoHS-compliant, LGA package

Applications

Industrial Scanner

Test instrumentation

Cellular Infrastructure – mmWave 5G

Military radios, radars, and electronic counter measures (ECMs)

Microwave radios and very small aperture terminals (VSATs)
