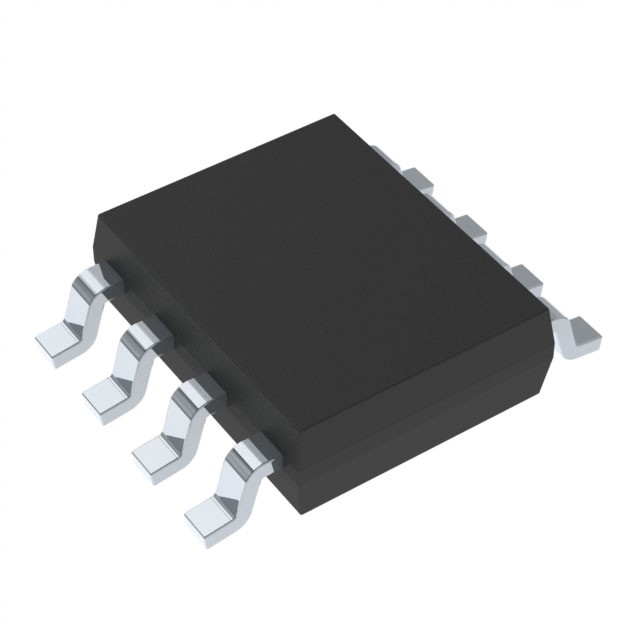

The ADUM321N0BRZ are dual channel digital isolators based on Analog Devices' iCoupler® technology. These isolation elements combine high-speed, complementary metal-oxide-semiconductor (CMOS) and monolithic air-core transformer technology with excellent performance characteristics and comply with CISPR 32/EN 55032 Class B 5 Mbps limits. Maximum propagation delay is 10 ns and pulse width distortion is less than 3 ns at an operating voltage of 5 V. Channel matching is 3.0 ns maximum.

Features

High common-mode transient immunity: 180 kV/μs typical

High immunity to radiated and conducted noise

Low propagation delay

6.2 ns typical at 5 V operation (10 ns maximum)

Low dynamic power consumption, <1.65 mA/ch at 1 Mbps

2.25 V to 5.5 V level transition

150 Mbps maximum guaranteed data rate

High-temperature operation: 125°C

Safety and regulatory approvals

UL Listed to UL1577

3000 V rms (SOIC_N)

VDE Certificate of Conformity

VIORM = 636 V peak (SOIC_N)

CSA Component Certification to IEC 62368-1 and IEC 61010-1

TÜV SÜD component certification according to EN 62368-1 standard

CQC component certification to GB4943.1-2022

Applications

Inverters

Power supplies

Industrial fieldbus isolation

PWM controller signal isolation

General Purpose Multi-Channel Isolation
