ADRF5022BCCZN is a nonreflective, single-pole double-throw (SPDT) switch manufactured in the silicon process. It operates from 100 MHz to 45 GHz with a typical insertion loss of 2.3 dB and isolation of 43 dB.

Product Features

Ultra-wideband frequency range: 100 MHz to 45 GHz

Nonreflective design

Low insertion loss

1.2 dB typical to 18 GHz

1.9 dB typical to 40 GHz

2.3 dB typical to 45 GHz

High Isolation: 43 dB typical to 45 GHz

High input linearity

0.1 dB power compression (P0.1dB): 31 dBm

Third-order intercept (IP3): 55 dBm

High power handling at TCASE = 85°C

30 dBm through path

24 dBm terminated path

30 dBm hot switching (RFC port)

RF settling time (0.1 dB final RF output): 30 ns

No low-frequency spurious signals

All off-state control

Positive control interface: CMOS-/LVTTL-compatible

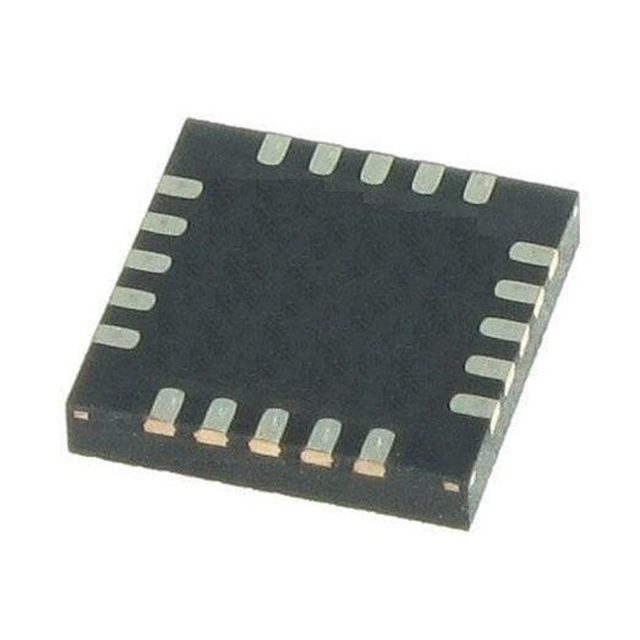

20-terminal, 3.0 mm × 3.0 mm LGA package

Pin-compatible with ADRF5023, low-frequency cutoff version

APPLICATIONS

Test and instrumentation

Cellular infrastructure: 5G millimeter wave

Military radios, radars, and electronic countermeasures (ECMs)

Microwave radios and very small aperture terminals (VSATs)

Industrial scanners
