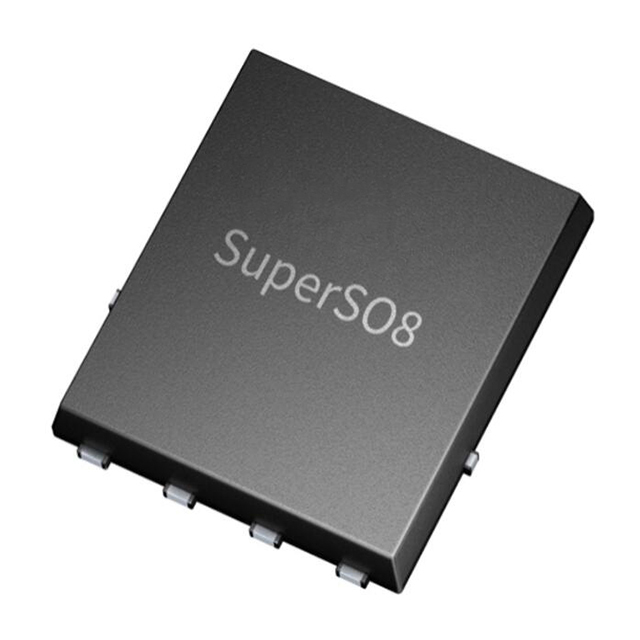

BSC112N06LD is 60V OptiMOS™ 2 N-Channel (Dual) Power MOSFET Transistors.

Product Attributes

Technology MOSFET (Metal Oxide)

Configuration 2 N-Channel (Dual)

FET Feature Logic Level Gate

Drain to Source Voltage (Vdss) 60V

Current - Continuous Drain (Id) @ 25°C 20A (Tc)

Rds On (Max) @ Id, Vgs 11.2mOhm @ 17A, 10V

Vgs(th) (Max) @ Id 2.2V @ 28µA

Gate Charge (Qg) (Max) @ Vgs 55nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds 4020pF @ 30V

Power - Max 65W (Tc)

Operating Temperature -55°C ~ 175°C (TJ)

Mounting Type Surface Mount

Package / Case 8-PowerVDFN

Supplier Device Package PG-TDSON-8-4

Benefits

Dual Super SO8 package for high power density (smallest footprint)

Superior thermal resistance

High operating temperature up to 175°C

High shot-through immunity due to Qgd/Qgs<0.8

Pb-free plating, RoHS compliant

Potential Applications

SMPS

Inductive wireless charging

Load switches

Battery management systems

LV drives
