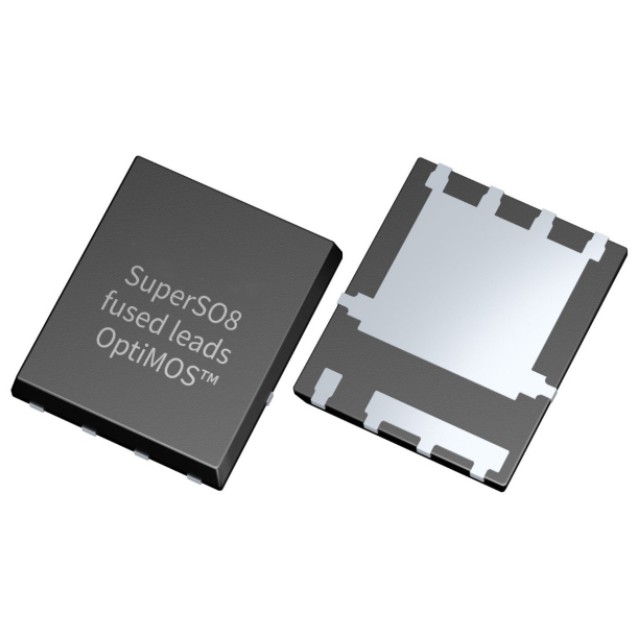

ISC007N04NM6 is an N-channel power MOSFET belonging to the OptiMOS™ 6 series, packaged in a PG-TDSON-8 FL package. This device features ultra-low on-resistance (RDS(on) = 0.7 mΩ @ 10 V VGS) and high current-carrying capability (48 A @ Ta, 381 A @ Tc), specifically designed for high-efficiency power conversion, battery management, and industrial drive applications.

ISC007N04NM6 Product Features

Low on-resistance: Maximum on-resistance (RDS(on)) is only 0.7 mΩ (at VGS=10V, ID=50A), helping to reduce power loss.

High current capability: Continuous drain current (ID) can reach 381A.

High avalanche capability: 100% avalanche tested to ensure reliable operation under overload conditions.

Optimised charge ratio: QGD/QGS < 0.8, with C.dv/dt immunity to reduce gate voltage spikes.

Low gate charge: Reduces switching losses.

Normal-level gate drive: Prevents erroneous conduction in noisy environments.

Environmental features: Lead-free plating, RoHS compliant, and halogen-free.

Wide operating temperature range: -55°C to +175°C.

ISC007N04NM6 Product Attributes

Manufacturer:    Infineon

Product Type:    MOSFET

Technology:    Si

Mounting Style:    SMD/SMT

Package/Case:    TDSON-FL-8

Transistor Polarity:    N-Channel

Number of Channels:    1 Channel

Vds - Drain-Source Breakdown Voltage:    40 V

Id - Continuous Drain Current:    381 A

Rds On - Drain-Source On-Resistance:    700 uOhms

Vgs - Gate-Source Voltage:    - 20 V, + 20 V

Vgs th - Gate-Source Threshold Voltage:    2.8 V

Qg - Gate Charge:    94 nC

Minimum operating temperature:    -55°C

Maximum operating temperature:    +175°C

Pd - Power dissipation:    188 W

Channel mode:    Enhancement

Trademark name:    OptiMOS

Application areas

ISC007N04NM6 is widely used in the following areas:

Battery-powered applications: such as battery-powered tools, battery management.

Low-voltage drivers: Suitable for low-voltage driver applications.

Switching power supplies (SMPS): Such as synchronous rectification, DC-DC converters.

Load switches: Used to control the power supply status of electronic devices.

Motor drives: Suitable for FOC (Field-Oriented Control) and DTC (Direct Torque Control) motor control technologies.
