The AD5753BCPZ is a single-channel voltage and current output digital-to-analog converter (DAC) that operates over a voltage range of -33 V minimum on AVSS to +33 V maximum on AVDD1, with a maximum operating voltage between the two rails of 60 V. On-chip dynamic power control (DPC) allows for a large reduction in package power consumption. This minimisation is achieved by adjusting the voltages (VDPC+ and VDPC-) sent to the VIOUT output driver circuits from ±5 V to ±27 V supply voltages using step-down dc/dc converters that have been optimised for minimum on-chip power consumption.

Product Attributes

Number of bits: 16

Number of digital-to-analogue converters: 1

Build-up time: 20µs

Output Type: Voltage - Buffered, Current - Unbuffered

Differential outputs: None

Data interfaces: DSP, MICROWIRE™, QSPI™, and SPI™

Reference Type: External, Internal

Voltage - Powered, Analogue: -30V ~ 0V, 5V ~ 33V

Voltage - Powered, Digital: 1.71V ~ 5.5V

INL/DNL (LSB): ±0.006, ±1 (max)

Architecture: R-2R

Operating Temperature: -40°C ~ 115°C

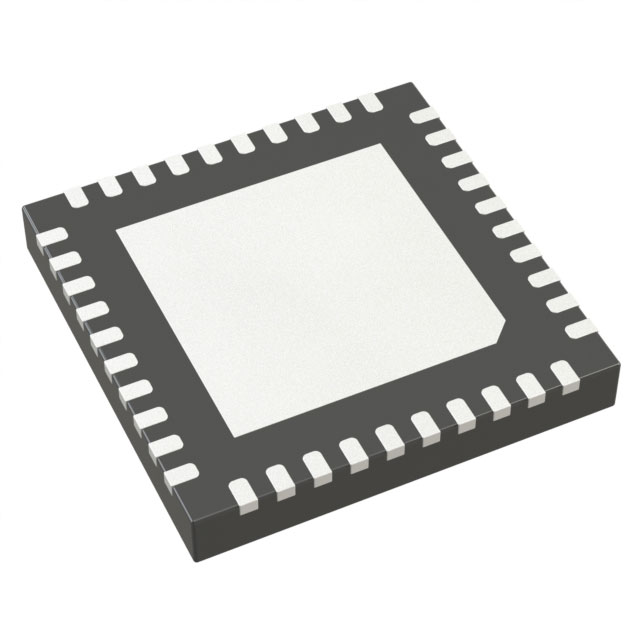

Package/Shell: 40-VFQFN Exposed Pad, CSP

Supplier Device Package: 40-LFCSP-VQ (6x6)

Mounting Type: Surface Mount

Applications

● Process Control

● Actuator control

● Channel-isolated analogue outputs

● Programmable Logic Controller (PLC) and Distributed Control System (DCS) applications

● HART network connections
