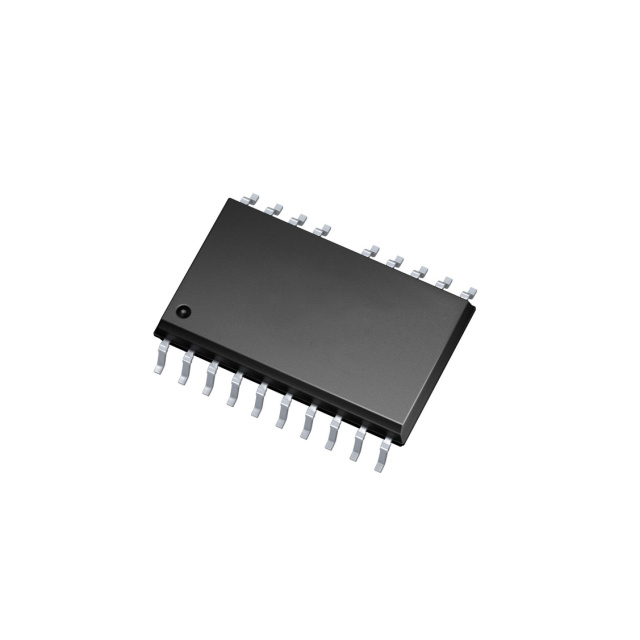

ICL5102HV is a highly integrated multi-mode (CrCM and DCM) PFC and resonant HB combination controller.

Features

Integrated two stage combination controller allows for reduced number of external components, optimizes Bill of Materials (BOM) and form factor.

PFC controller with Critical Conduction Mode (CrCM) + Discontinuous Conduction Mode (DCM)

Resonant Half- Bridge (HB) controller with fixed or variable switching frequency control

Maximum 500 KHz HB switching frequency and soft-start frequency up to 1.3 MHz

Resonant HB Burst Mode (BM) ensures power limitation and low standby power < 300mW.

Supports universal AC input voltage (90 to 480 Vms) nominal

Excellent system efficiency up to 94%

THD optimization ensures Low harmonic distortion (Total Harmonic Distortion (THD) < 5%) down to 30% nominal load.

Integrated High Side MOSFET driver

Comprehensive set of protection features with auto-restart reaction:

Input brown-out protection

PFC bus over-voltage protection

PFC over-current protection

Output over-voltage protection (OVP)

Output over-current/short circuit protection (0CP)

Output over-power/over-load protection (OPP)

Capacitive mode protection

External over-temperature protection (OTP)

Applications

Offline LED Drivers for commercial and industrial lighting up to 350 W

High density AC/DC power supply
