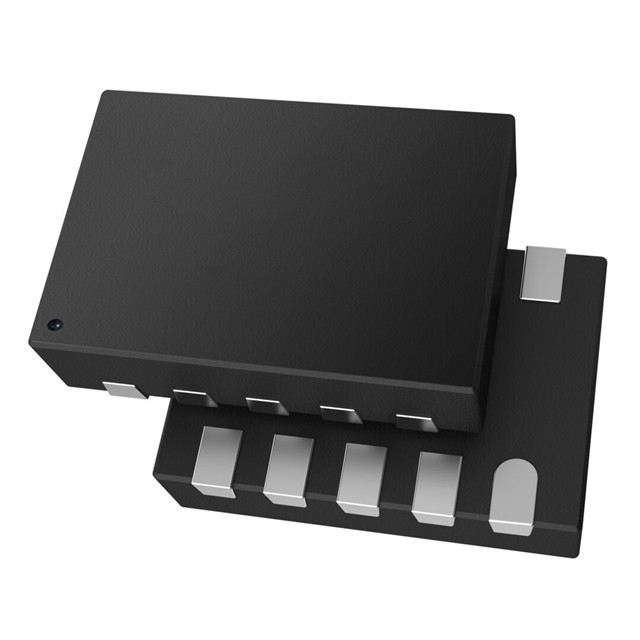

The ADG5401FBCPZ main channel switches are SPST, low on-resistance switches with overvoltage protection, power-down protection, and over-oops detection on the source pins (S and SFB.) The ADG5401FBCPZ also has a protected secondary feedback channel that can be used for digital-to-analog converter (DAC) or amplifier outputs.

Benefits and Features

3x2 mm LFCSP Analog I/O Protection and Detection Solutions

Overvoltage protection up to ±60 V on S SFB pin

Power-down protection up to ±60 V on S SFB pin

Integrated 0.6 kΩ secondary feedback channel

Known output under all conditions

User-enabled power-on condition pulls source to 0 V

No digital inputs required for status awareness

Latch-up immunity

Optimized resistance for measurement and feedback channels

Typical low on-resistance of 6 Ω on signal channels

On-resistance on ultra-flat signal channels

3 mm × 2 mm LFCS

VSS to VDD -2 V signal range

Fully constant operating voltages of ±15 V, ±20 V, +12 V, and +36 V

±5 V to ±22 V dual-supply supply

8 V to 44 V single supply

Applications

DAC output protection

Amplifier output protection

Analog output modules

Remote/distributed control systems

Data Acquisition

Instrumentation
