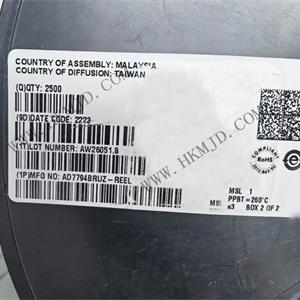

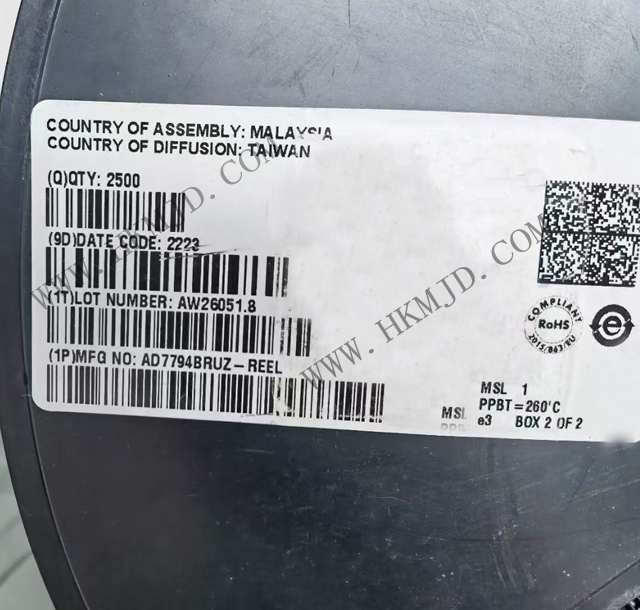

Trade Name:AD7794BRUZ
Data Manual:AD7794BRUZ.pdf
Brand:ADI
Particular Year:23+
Package:TSSOP24
Delivery Date:New and Original
Stock: 8000pcs
The AD7794BRUZ are low power, low noise, complete analogue front ends for high precision measurement applications. They contain a low-noise, 24-bit ∑-Δ ADC with six differential inputs. On-chip low-noise instrumentation amplifiers mean that small amplitude signals can be interfaced directly to the ADC.
Product specifications
Product Type: Analog to Digital Converters - ADCs
Series: AD7794
Mounting Style: SMD/SMT
Package / Case: TSSOP-24
Resolution: 24 bit
Number of Channels: 6 Channel
Interface type: 3-Wire, Microwire, SPI
Sampling ratio: 470 S/s
Input type: Differential
Structure: Sigma-Delta
Analogue supply voltage: 2.7 V to 5.25 V
Digital supply voltage: 2.7 V to 5.25 V
Minimum operating temperature: - 40 C
Maximum operating temperature: + 105 C
Development Kit: EVAL-AD7794EBZ
Gain error: +/- 10 uV
Height: 1.05 mm
INL - Integral nonlinearity: +/- 15 ppm
Input voltage: +/- 2.5 V
Length: 7.8 mm
Number of ADC inputs: 6 Input
Number of converters: 1 Converter
Operating supply voltage: 5 V
Pd-Power dissipation: 2.5 mW
Reference type: External, Internal
Sample and hold: No
Number of factory packages: 62
Supply voltage - max: 5 V
Supply voltage - min: 5 V
Width: 4.4 mm
Unit weight: 212 mg
Applications
Temperature measurement
Pressure measurement
Weight measurement
Strain gauge sensors
Gas analysis
