The AD5666BRUZ-1 is a low-power, quad-channel, 16-bit buffered voltage output DAC designed for monotonicity from a single 2.7 V to 5.5 V supply. It is designed to be monotonic with a single 2.7 V to 5.5 V supply. It has an internal on-chip reference with a gain of 2. The 1.25 V 5 ppm/°C reference has a full-scale output of 2.5 V. The on-board reference turns off at power-up, allowing the use of an external reference. The internal reference can be turned on by writing to the DAC.

Product Attributes

Number of bits: 16

Number of DACs: 4

Build Time: 10µs

Output Type: Voltage - Buffered

Differential outputs: None

Data Interface: SPI, DSP

Reference Type: External, Internal

Voltage - Powered, Analogue: 2.7V ~ 5.5V

Voltage - Powered, Digital: 2.7V ~ 5.5V

INL/DNL (LSB): ±16 (max), ±1 (max)

Architecture: Resistor String DAC

Operating Temperature: -40°C ~ 105°C

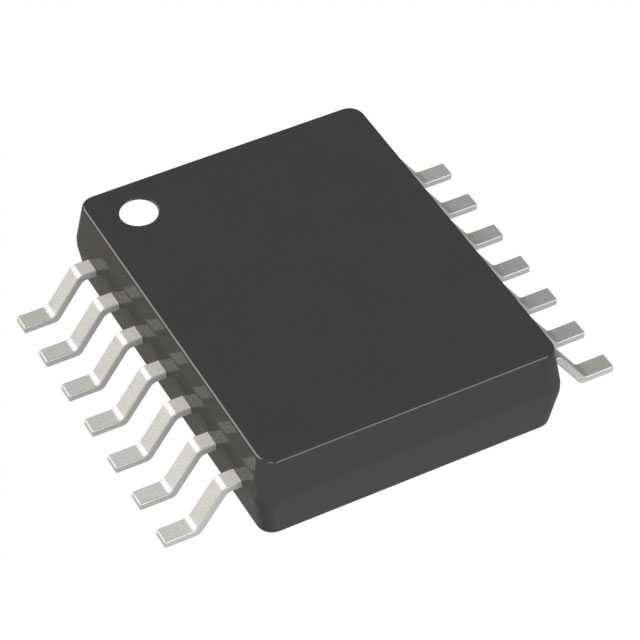

Package/Case: 14-TSSOP (0.173", 4.40mm wide)

Supplier Device Package: 14-TSSOP

Mounting Type: Surface Mount

Applications

● Process control

● Data acquisition systems

● Portable battery-powered instruments

● Digital gain and offset adjustment

● Programmable voltage and current sources

● Programmable attenuators
