The AD9106BCPZ TxDAC® and Waveform Generator is a high-performance quad digital-to-analogue converter (DAC) with integrated on-chip pattern memory for direct complex waveform generation. On-chip pattern memory for complex waveform generation and Direct Digital Synthesizer (DDS Digital Synthesizer (DDS). The DDS is a 12-bit output, up to 180 MHz master-clocked sinewave generator with a 24-bit tuning word that allows 10.8 Hz/L word with a 10.8 Hz/LSB frequency resolution. The DDS has a single frequency output for all four DACs and The DDS has a single frequency output for all four DACs and independent programmable phase shift outputs for each DAC.

Product Attributes

Number of bits: 12

Number of DACs: 4

Build Time: 31.2ns (standard)

Output Type: Current - Unbuffered

Differential Output: Yes

Data Interface: SPI

Reference Type: External, Internal

Voltage - Powered, Analogue: 1.7V ~ 3.6V

Voltage - Powered, Digital: 1.7V ~ 3.6V

INL/DNL (LSB): ±0.5, ±0.4

Architecture: Segmented DAC

Operating Temperature: -40°C ~ 85°C

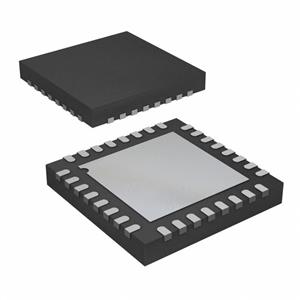

Package/Shell: 32-WFQFN Exposed Pad, CSP

Supplier Device Package: 32-LFCSP (5x5)

Mounting Type: Surface Mount

Applications

● Medical Instruments

● Ultrasonic transducer excitation

● Portable instruments

● Signal Generators, Arbitrary Waveform Generators
