The LTC2662IUH-16 is a family of five-channel, 16-/12-bit current-source digital-to-analog converters that provide five highly compliant current-source outputs with a guaranteed 1V drop at 200mA (at 200mA). The devices support load voltages up to 32V. There are eight current ranges with programmable full-scale outputs of up to 300mA per channel; and channels can be connected in parallel for ultra-fine regulation of high currents or to achieve combined outputs of up to 1.5A. Each output channel has a dedicated power supply pin. Each output channel operates from 2.85V to 33V and an internal switch pulls any output low.

Product Attributes

Number of bits: 16

Number of digital-to-analogue converters: 5

Build-up time: 8.7ms (standard)

Output Type: Current - Unbuffered

Differential Output: None

Data Interface: Serial, SPI

Reference Type: External, Internal

Voltage - Powered, Analogue: 2.85V ~ 5.5V

Voltage - Powered, Digital: 1.71V ~ 5.5V

INL/DNL (LSB): ±12, ±0.2

Architecture: Current Source

Operating Temperature: -40°C ~ 85°C

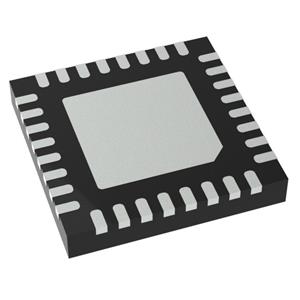

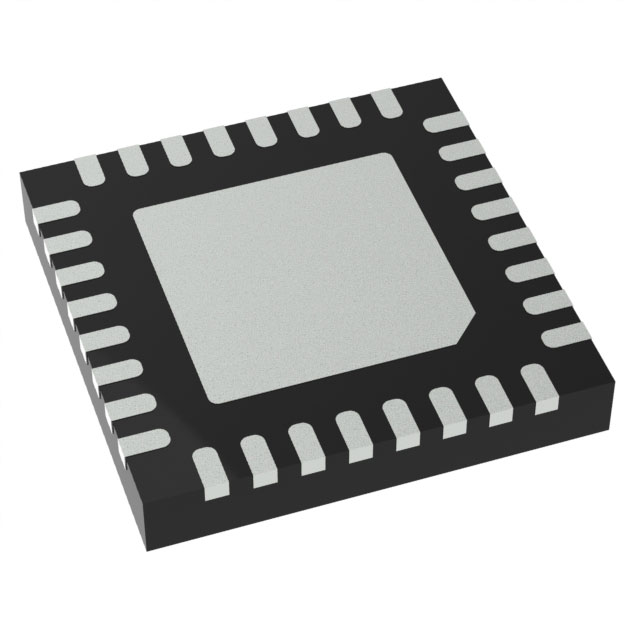

Package/Shell: 32-WFQFN Exposed Pad

Supplier Device Package: 32-QFN (5x5)

Mounting Type: Surface Mount

Applications

● Tunable lasers

● Semiconductor optical amplifiers

● Resistance heaters

● Current-mode bias

● Proportional electromagnetic drive
