The AD5066BRUZ is a low-power, 16-bit, quad-channel, unbuffered voltage output nanoDAC® with a relative accuracy specification of ±1 LSB INL and a separate reference pin that operates from a single 2.7 V to 5.5 V supply. A differential accuracy specification of ±1 LSB DNL is also available with an on-chip reference buffer. The device features a versatile 3-wire low-power Schmitt trigger serial interface that operates at clock rates up to 50 MHz and is compatible with standard SPI®, QSPI™, MICROWIRE™ and most DSP interface standards.

Product Attributes

Number of bits: 16

Number of digital-to-analogue converters: 4

Build Time: 15µs

Output Type: Voltage - Unbuffered

Differential outputs: None

Data Interface: SPI, DSP

Reference Type: External

Voltage - Powered, Analogue: 2.7V ~ 5.5V

Voltage - Powered, Digital: 2.7V ~ 5.5V

INL/DNL (LSB): ±0.5, ±0.2

Architecture: R-2R

Operating Temperature: -40°C ~ 125°C

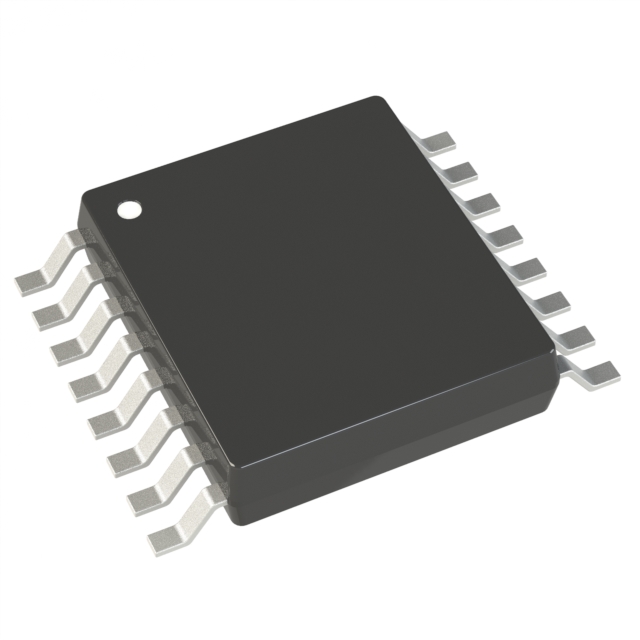

Package/Case: 16-TSSOP (0.173", 4.40mm Width)

Supplier Device Package: 16-TSSOP

Mounting Type: Surface Mount

Applications

● Process control

● Data acquisition systems

● Portable battery-powered instruments

● Digital gain and offset adjustment

● Programmable voltage and current sources
