The LT8609AEDDM-5 is a compact, efficient and high-speed synchronous monolithic step-down switching regulator that consumes only 1.7µV of non-switching quiescent current when the output is stabilized at 5V.

Features

Wide input voltage range: 3.0V to 42V

Ultra-low quiescent current Burst Mode® operation:

IQ of 2.5µA when adjusting 12VIN to 3.3VOUT

Output ripple < 10mVP-P

Efficient 2MHz synchronous operation:

93% efficiency at 1A, 12VIN for 5VOUT

Maximum continuous output is 3A

Fast minimum switch-on time: 45ns

LT8609A provides fixed 3.3V and 5V outputs

Adjustable and synchronizable: 200kHz to 2.2MHz

Spread Spectrum Frequency (SSFM) for Low EMI

Allows use of small inductors

Low dropout voltage

Peak current mode operation

Precise 1V enable pin thresholds

Internal compensation

Output soft-start and tracking

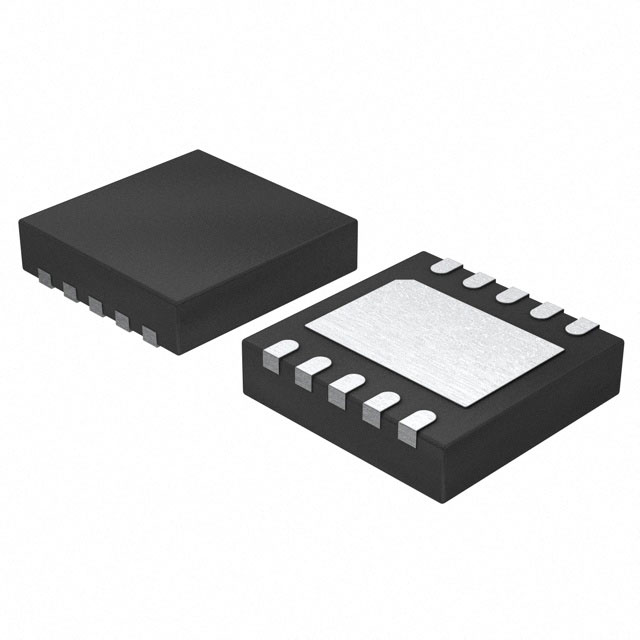

Small 10-pin 3mm × 3mm DFN package with side-wettable flanks

AEC-Q100 certified for automotive applications

Applications

GSM transceivers

General-purpose buck converters

Low EMI Step-Down
