Service Telephone:86-755-83294757

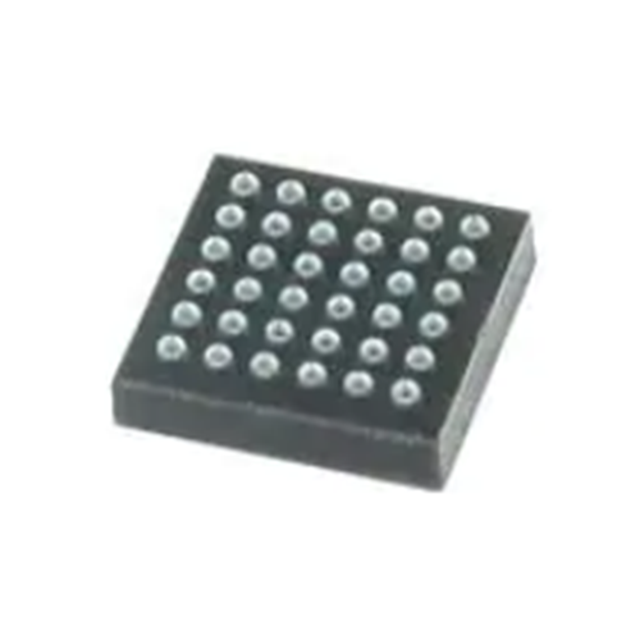

Trade Name:MAX77789EWX
Data Manual:MAX77789EWX.pdf
Brand:Maxim
Particular Year:23+
Package:36-WFBGA
Delivery Date:New original
Stock: 2000pcs
MAX77789EWX is a standalone, 3.15A charger withintegrated USB Type-C® CC detection and reverseboost capability. The IC operates with an input voltageof 4.6V to 13.4V and has a maximum input current limitof 3A.
Features
Up to 16V Protection
13.4V Maximum Input Operating Voltage
3.15A Maximum Charging Current
6A Discharge Current Protection
Integrated CC Detection for USB Type-C
Supporting Dual Role Port (DRP)
DP/DN Manual Control for the HVDCP
Integrated BC1.2 Detection for Legacy SDP, DCP,CDP, and DCD Timeout
Integrated USB Detection for Common ProprietaryCharger Types
Automatic Input Current Limit Configuration
Input Voltage Regulation with Adaptive Input CurrentLimit (AICL)
5.1V, 1.5A OTG Mode and BYP Reverse Boost
Integrated Power Path
Integrated Battery True-Disconnect FET
I2C Compatible with INTB
2.85mm x 2.85mm, 6x6 WLP Package
Applications
Mobile Point-of-Sale (mPOS) Terminals
Portable Medical Devices
Wireless Headphones
GPS Trackers
Charging Cradles for Wearable Devices
Power Banks
Mobile Routers
Model
Brand
Package
Quantity
Describe
Maxim
36-WLP
2222
PMIC with ultra-low IQ voltage regulator and battery charger for small lithium-ion systems
MPS
QFN-16
15000
MP26123 2A,24V Input, 600kHz 2/3-Cell Switching Li-ion Battery Charger
