The TLE9201SG is a general purpose 6A H bridge for industrial and automotive applications, designed for small DC motors and inductive load control. The device meets the requirements of harsh automotive environmental conditions and meets AEC-Q100 quality standards.

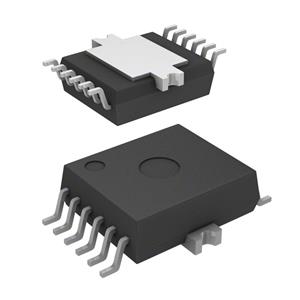

Device: TLE9201SGAUMA1

Output Configuration: Half bridge (2)

Application: DC motor, general purpose

Interface: PWM, SPI

Load type: Inductance

Technology: Power MOSFET

On-resistance (typical) : 100 milliohm LS, 100 milliohm HS

Current - Output/channel: 6A

Current - Peak output: -

Voltage - Power supply: 5V ~ 28V

Voltage - load: 5V ~ 28V

Operating temperature: -40°C ~ 150°C (TJ)

Features: -

Fault protection: open load detection, overtemperature, short circuit, UVLO

Mounting type: Surface mount type

Package/housing: 12-BSOP (0.295", 7.50mm wide) bare pad

Supplier device package: PG-DSO-12-17

Basic product number: TLE9201
