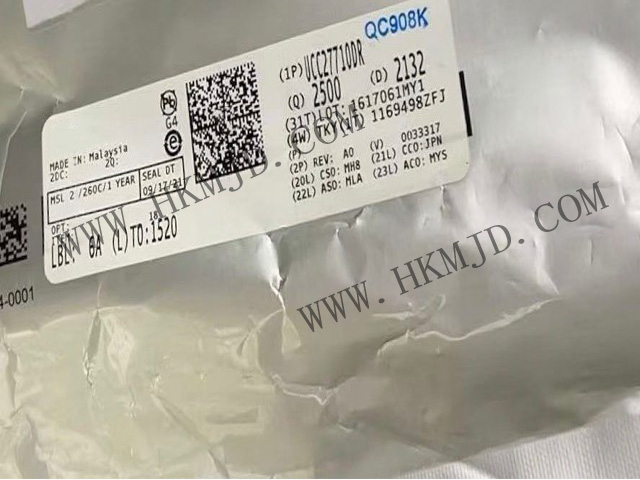

The UCC27710DR is a 620V high-side and low-side gate driver with 0.5A pull-current and 1.0A sink-current capability, specifically designed for driving power MOSFETs or IGBTs.

For IGBTs, the recommended VDD operating voltage is 10V to 20V, and for MOSFETs, the recommended VDD operating voltage is 17V.

The UCC27710DR includes protection features such that, in this case, when the input remains open-circuited or when the minimum input pulse width specification is not met, the output remains low. Interlock and dead-time functions prevent both outputs from turning on simultaneously. Additionally, the device accepts a wide bias supply voltage range of 10V to 20V and provides UVLO protection for the VDD and HB bias supplies.

The device utilises TI's advanced high-voltage device technology, featuring a powerful driver with excellent noise and transient immunity, including a large input negative voltage tolerance, high dV/dt tolerance, a wide negative transient safe operating area (NTSOA) at the switch node, and interlocking.

The device includes a grounded reference channel (LO) and a floating channel (HO), the latter specifically designed for bootstrap or isolated power supply operation. The device features fast propagation delay characteristics and excellent delay matching between the two channels. On the UCC27710DR, each channel is controlled by its respective input pins HI and LI.

UCC27710DR Features

• High-side and low-side configurations

• Dual inputs with output interlock and 150ns dead time

• Fully operational at voltages up to 620V, with an absolute maximum voltage of 700V on the HB pin

• Recommended VDD range of 10V to 20V

• Peak output current: 0.5A sink current, 1.0A source current

• 50V/ns dv/dt immunity

• Logic operating voltage on the HS pin up to –11V

• Input negative voltage tolerance of –5V

• Large negative transient safe operating area

• UVLO protection for both channels

• Short propagation delay (typical value 140ns)

• Delay matching (typical value 8ns)

• Floating channel designed for bootstrap operation

• Low static current

• TTL and CMOS compatible inputs

• Industry standard SOIC-8 package

• All parameters rated for temperature range: –40°C to +125°C

UCC27710DR Applications

• Motor drives (stepper motors, HVAC, fans, power tools, robots, drones, servos)

• Lighting, LED power supplies, indoor lighting

• Appliances, washing machines and dryers, refrigerators

• Induction heating

• DC-to-AC inverters
