The R5F56604ADFL supports a 5V power supply to reduce system cost and has excellent noise immunity, eliminating the need for an external inductor to cancel noise.The RXv3 core operates at 120MHz with zero wait for flash access, enabling stable computation with excellent real-time performance. The number of active ports on the general-purpose IO pins has been increased by approximately 10% over the previous RX210 products compatible with 5V power supplies, helping to simplify system upgrades by increasing the number of sensors that can be connected in the same package.

Product Attributes

Core processor: RXv3

Core specification: 32-bit

Speed: 120MHz

Connectivity: CANbus, EBI/EMI, I²C, LIN, SCI, SPI

Peripherals: DMA, LVD, POR, PWM, WDT

Number of I/O: 39

Program memory capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM Size: 32K x 8

RAM Size: 128K x 8

Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V

Data Converter: A/D 10x12b; D/A 2x12b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

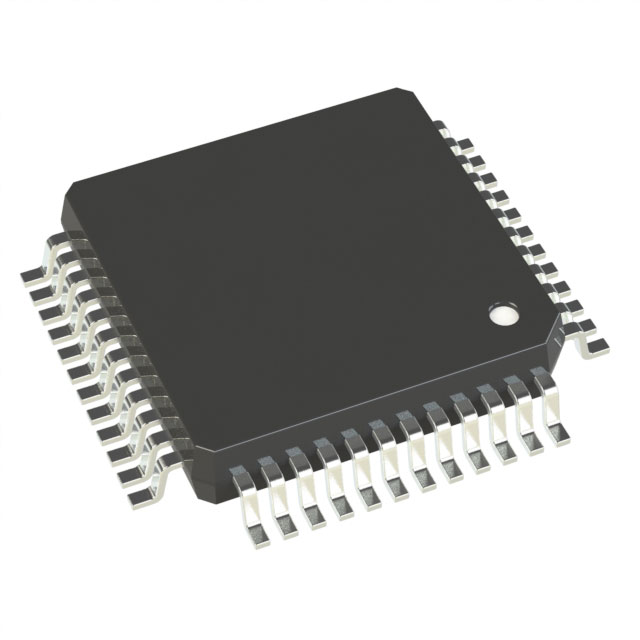

Package/Housing: 48-LQFP

Supplier Device Package: 48-LFQFP (7x7)

APPLICATIONS

● Online uninterruptible power supply (UPS)
