The LT3154AV device is a high-efficiency, high-current, buck-boost DC/DC converter that operates at an input voltage above, below, or equal to the regulated output voltage. The LT3154's advanced topology provides continuous transmission in all operating modes. The VIN operates in the 1.8V to 5.5V range, providing flexibility for a variety of power supplies. The output voltage can be adjusted between 1.8V and 5.5V.

specification

Function: Boost/buck

Output configuration: positive

Topology: depressurizes and boosts voltage

Output type: Adjustable

Output number: 1

Voltage - input (min) : 1.8V

Voltage - input (Max) : 5.5V

Voltage - Output (min/fixed) : 1.8V

Voltage - output (Max) : 5.5V

Current - Output: 5A

Frequency-switch: 400kHz ~ 4MHz

Synchronous rectifier: Yes

Operating temperature: -40°C ~ 125°C (TJ)

Mounting type: Surface mount type

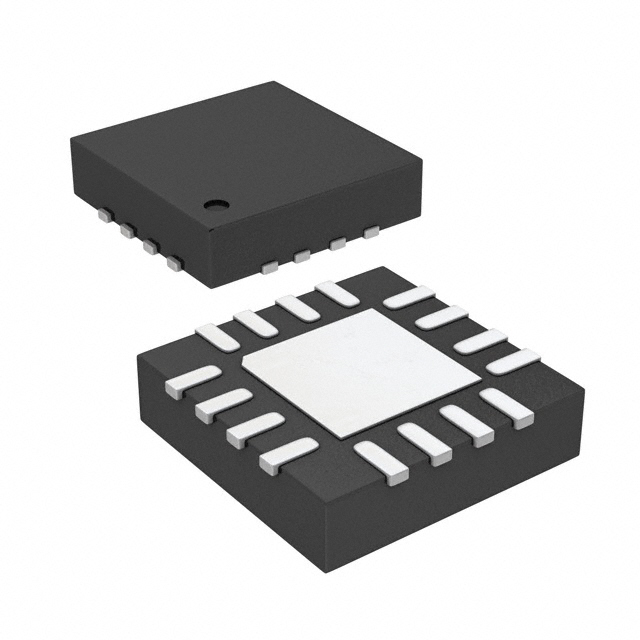

Package/housing: 16-VFQFN bare pad

Supplier Package: 16-LQFN (3x3)

Typical applications include portable inventory management terminals, laptops, medical and industrial instrumentation, radio frequency transmitters, backup power applications, and battery powered systems.
