The AD5761RARUZ is a single-channel, 16/12-bit serial input, voltage-output digital-to-analogue converter (DAC). Powered by a single (+4.75 V to +30 V) or dual (-16.5 V to 0 V VSS and 4.75 V to 16.5 V VDD) supply. The integrated output amplifiers, reference voltage source buffers and reference voltage sources are versatile solutions that are extremely easy to use. The devices guarantee monotonicity with an integral nonlinearity (INL) of ±2 LSB (maximum) over the selected range, noise of 35 nV/√Hz, and a build-up time of 7.5 μs.

Product Attributes

Number of bits: 16

Number of digital-to-analogue converters: 1

Build-up time: 9µs

Output Type: Voltage - Buffered

Differential output: None

Data Interface: SPI

Reference Type: External, Internal

Voltage - Powered, Analogue: 4.5V ~ 30V, -16.5V

Voltage - Powered, Digital: 1.7V ~ 5.5V

INL/DNL (LSB): ±8 (max), ±1 (max)

Architecture: R-2R

Operating Temperature: -40°C ~ 125°C

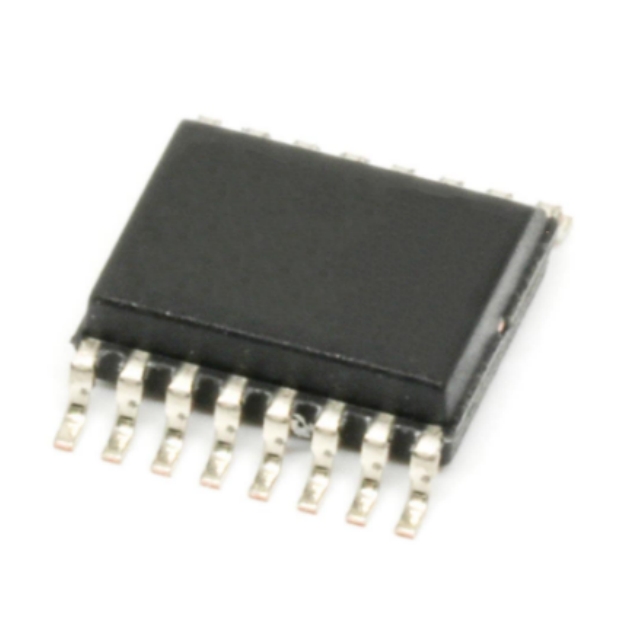

Package/Case: 16-TSSOP (0.173", 4.40mm Width)

Supplier Device Package: 16-TSSOP

Mounting Type: Surface Mount

Applications

● Industrial automation

● Instrumentation, data acquisition

● Open/closed loop servo control, process control

● Programmable logic controllers
