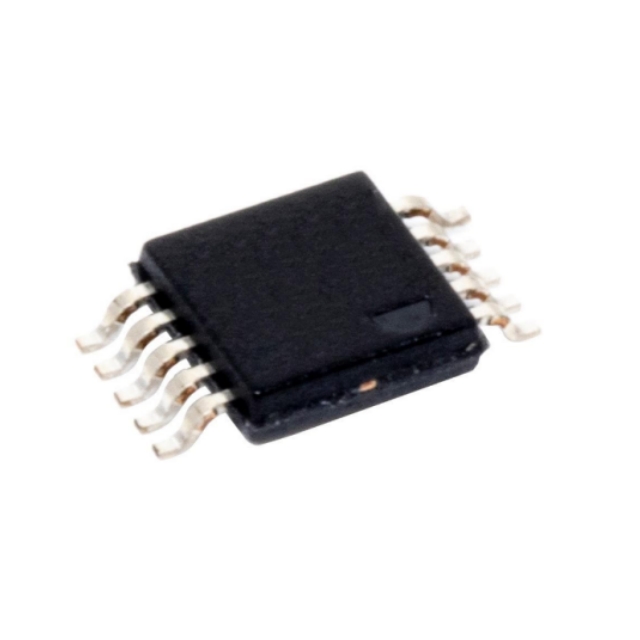

Trade Name:AD5425YRMZ
Data Manual:AD5425YRMZ.pdf
Brand:ADI
Particular Year:23+
Package:10-MSOP
Delivery Date:New and Original
Stock: 1000pcs
The AD5425YRMZ is a CMOS, 8-bit current output digital-to-analogue converter powered from a +2.5 V to 5.5 V supply, making it suitable for battery-powered applications as well as many other applications. The DAC features a double-buffered, three-wire serial interface and is compatible with SPI™, QSPI™, MICROWIRE™ and most DSP interface standards. The device also provides an LDAC pin that allows simultaneous updates in multiple DAC configurations. At power-up, the internal shift registers and latches are filled with zeros and the DAC output is 0 V.
Product Attributes
Number of bits: 8
Number of digital-to-analogue converters: 1
Build Time: 160ns
Output Type: Current - Unbuffered
Differential output: Yes
Data Interface: SPI, DSP
Reference Type: External
Voltage - Powered, Analogue: 2.5V ~ 5.5V
Voltage - Powered, Digital: 2.5V ~ 5.5V
INL/DNL (LSB): ±0.25 (max), ±0.5 (max)
Architecture: R-2R
Operating Temperature: -40°C ~ 125°C
Package/Housing: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package: 10-MSOP
Mounting Type: Surface Mount
Applications
● Portable Battery Powered Applications
● Signal generators
● Analogue processing
● Instrumentation applications
● Programmable amplifiers and attenuators
● Digitally Controlled Calibration
● Programmable Filters and Oscillators
● Composite video
● Ultrasound
● Gain, offset, and voltage adjustments
