The AD5679BCPZ-1 are low-power, 16-channel, 16-bit digital-to-analog converters (DACs) that provide buffered voltage outputs and include a 2.5 V, 2 ppm/°C internal reference voltage source (enabled by default) and gain-selector pins to produce full-scale outputs of 2.5 V (gain = 1) or 5 V (gain = 2). The kits are powered from a single 2.7 V to 5.5 V supply and are monotonic by design.

Features

High Performance

High relative accuracy (INL): ±4 LSB (max) at 16 bits (AD5679/AD5679R)

TUE: ±0.14% FSR (max)

Misalignment error: ±1.5 mV (max)

Gain error: ±0.06% FSR (max)

Low drift 2.5 V reference voltage source temperature coefficient: 2 ppm/°C (typical)

40 mA short-circuit current

Wide operating range

Operating temperature range -40°C to +125°C

2.7 V to 5.5 V supply voltage range

Simplified implementation

User-selectable gain 1 or 2 (via GAIN pin)

1.8 V logic compatible

50 MHz serial peripheral interface (SPI) with readback or daisy-chaining

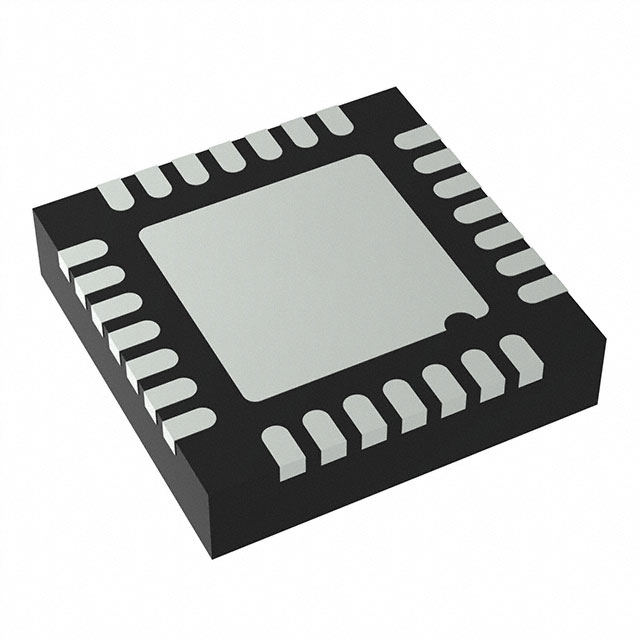

RoHS-compliant 28-pin 4 mm × 4 mm LFCSP package

Applications

Optical transceivers

Base station power amplifiers

Process control (programmable logic controller (PLC) input/output cards)

Industrial automation

Data acquisition systems
