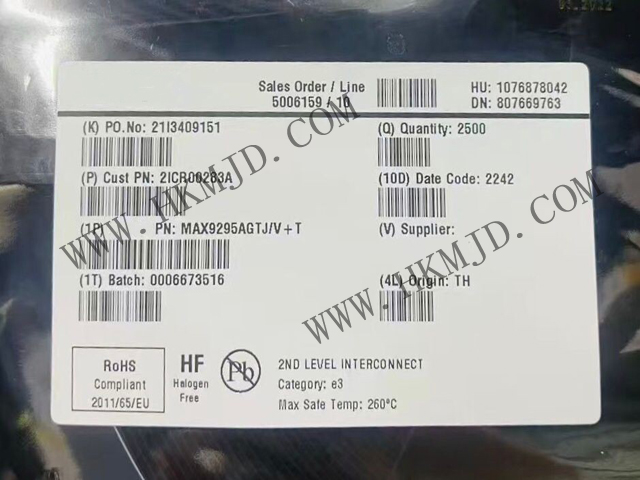

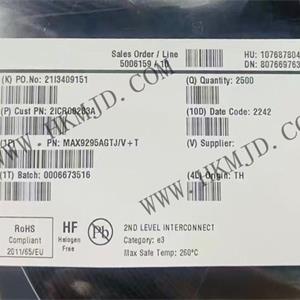

For picture reference, please see the specifications
< >

Commodity Model:MAX9295AGTJ/V

Trade Name:Interface - Serialiser

Brand:Maxim

Particular Year:22+

Package:QFN32

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX9295AGTJ/V
Package
QFN32
Describe
Serializers & Deserializers - Serdes

Product Description

The MAX9295AGTJ/V is a high-performance serialiser chip mainly used in the field of video signal transmission. It is capable of converting multiple high-definition video signals into a single high-speed serial data stream, thus reducing the number and complexity of cables or PCB wiring. The chip supports multiple video input formats and features low power consumption and high integration, making it ideal for automotive camera systems, security monitoring and other applications requiring efficient video transmission.


MAX9295AGTJ/V Technical Features

Multi-Channel Video Input: Integrates 4 video input channels, which can process multiple HD video signals at the same time.

High resolution support: Supports video resolutions up to 1080p60, ensuring clear and smooth video transmission.

Flexible Input Formats: Supports YCbCr 4:2:2, RGB and other standard video formats, and can automatically detect the synchronisation of input signals to adapt to the format requirements of different video sources.

Outstanding data transfer rate: Supporting up to 6Gbps serial data rate, it can quickly transfer a large amount of video data to meet the transmission requirements of high-definition video.

Low Power Consumption: Typical operating current is 75mA, which helps to extend the battery life of the device and reduce system power consumption.

Wide operating voltage range: The operating voltage range is from 3.16V to 3.46V to adapt to different power supply environments.

High reliability protection: Integrated short-circuit protection and thermal shutdown function can effectively prevent the chip from being damaged due to overheating or short-circuit, which improves the reliability and safety of the system.

Flexible Configuration Options: The parameters can be adjusted through the I2C interface to meet the needs of different application scenarios, providing flexible configuration options.

High level of integration: Built-in clock recovery circuit and equaliser ensure signal integrity after long-distance transmission, reducing the number of external components and simplifying circuit design.

Operating temperature range: The operating temperature range is -40°C to +105°C, which can adapt to various harsh environmental conditions and meet the needs of automotive electronics and other applications with high operating temperature requirements.


MAX9295AGTJ/V Applications

Automotive electronics: Widely used in automotive surround view systems, rear view cameras and driver monitoring systems, providing stable video signal transmission support for intelligent driver assistance systems.

Security monitoring: It is suitable for HD network cameras and video recorders, which can transmit and centralise the video signals from multiple cameras to improve the performance and reliability of the monitoring system.

Industrial automation equipment: Can be used in industrial automation equipment for visual inspection and identification module, to achieve real-time monitoring of the production process and quality inspection.

Medical imaging equipment: such as endoscopes and other instruments that require stable image transmission, to ensure the clarity and real-time medical imaging, assisting doctors to carry out accurate diagnosis and treatment.

Associated Products

Model

Brand

Package

Quantity

Describe

TDES960RTDT

TI

VQFN-64

1500

4.16 Gbps MIPI® CSI-2 V³Link deserialiser quad hub for high-speed sensors

MAX9263GCB

Maxim

TQFP-64

5000

HDCP Gigabit Multimedia Serial Link Serialiser/Deserialiser

DS90UB929TRGCRQ1

TI

VQFN-64

12000

720p HDMI to FPD-Link III Bridge Serialiser with HDCP

DS90UB935TRHBRQ1

TI

VQFN-32

3000

FPD-Link III 3Gbps Serialiser, VQFN-32

DS90UB914ATRHSRQ1

TI

WQFN-48

4000

25-100MHz 10/12-bit FPD-Link III Deserialiser

DS90UA101TRTVRQ1

TI

WQFN-32

3000

Automotive Multi-Channel Digital Audio Serialiser, WQFN-32

MAX96707GTG

Maxim

TQFN24

10000

1Mbps Serializer Inputs Outputs 24-TQFN (4x4)

MAX9282BGTM/V

Maxim

TQFN-48

2000

3.12Gbps GMSL Deserializers for Coax or STP Input and LVDS Output

MAX9286GTN/V

Maxim

TQFN-56

2000

Quad 1.5Gbps GMSL Deserializer with Coax or STP Input and CSI-2 Output

MAX9295DGTM/VY

Maxim

TQFN-48

5000

6Gbps Serializer 2-Input 1-Output 48-SWTQFN (7x7)
