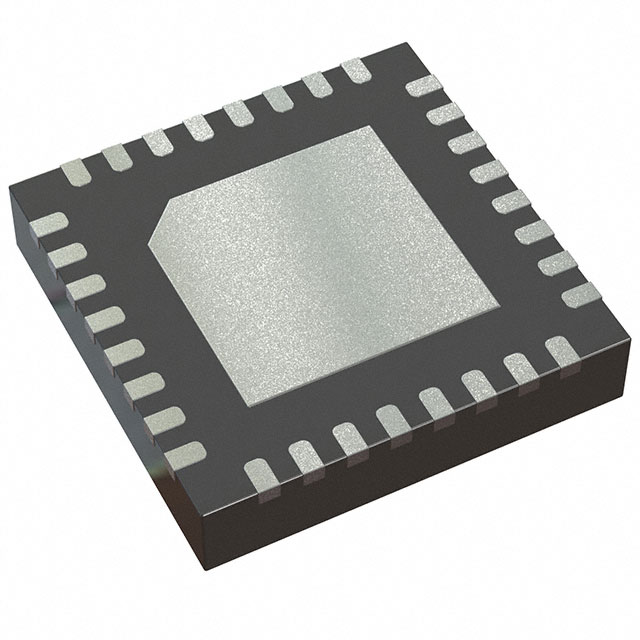

For picture reference, please see the specifications
< >

Commodity Model:MAX96708GTJ/V

Trade Name:MAX96708GTJ/V

Data Manual:MAX96708GTJ/V.pdf

Brand:Maxim

Particular Year:23+

Package:TQFN-32

Delivery Date:New and Original

Stock: 18000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX96708GTJ/V
Package
TQFN-32
Describe
Deserialiser Input Output 32-TQFN (5x5)

Product Description

The MAX96708GTJ/V is a small form factor deserialiser with features especially suited to automotive camera applications. Features include adaptive equalisation and output crosspoint switching. The embedded channel operates from 9.6kbps to 1Mbps in UART, I2C, and mixed UART/I2C modes, allowing the serialiser, deserialiser (SerDes), and camera registers to be set independent of video timing.


The deserialiser tracks data from the spread spectrum serial input. The serial input meets ISO 10605 and IEC 61000-4-2 ESD standards. The core power supply ranges from 1.7 V to 1.9 V, and the I/O power supply ranges from 1.7 V to 3.6 V. The devices are available in a 32-pin (5 mm × 5 mm) TQFN package with 0.5 mm pin spacing, and operate over the -40°C to +115°C temperature range.


Benefits and Features

Ideal for camera systems

Supports low-cost 50Ω coaxial (100Ω STP) cables

Video/control data error detection

High immunity mode to support reliable control channel EMC tolerance

Best-in-class supply current: 185mA (max)

Adaptive equalisation for transmission distances up to 15m at full speed operation

32-pin (5mm × 5mm) TQFN package

Frame-synchronous and field-synchronous encoding and tracking

High-speed deserialisation of data to support megapixel cameras

Serial bit rate up to 1.74Gbps

6.25MHz to 87MHz × 12-bit + H/V data

36.66MHz to 116MHz × 11-bit + H/V data

Multiple modes for system flexibility

9.6kbps to 1Mbps control channel, UART, I2C (clock spreading) or UART to I2C mode

2:1 input multiplexer for camera selection

15 hardware selectable I2C device addresses

Works with any Maxim GMSL serialiser

Crosspoint switch maps data to any output

Reduces EMI shielding requirements

Spread spectrum serial data tracking and conversion to parallel outputs

1.7V to 1.9V core voltage, 1.7V to 3.6V I/O supply

Peripheral functions for system verification

Built-in PRBS receiver for BER testing

Dedicated "Up/Down" GPI for camera frame sync triggering or other functions

Meets AEC-Q100 automotive specifications

-40°C to +115°C operating temperature range

±8kV contact discharge protection and ±15kV air gap discharge protection to meet IEC 61000-4-2 and ISO 10605 ESD protection requirements


Applications

Automotive camera applications

Associated Products

Model

Brand

Package

Quantity

Describe

TDES960RTDT

TI

VQFN-64

1500

4.16 Gbps MIPI® CSI-2 V³Link deserialiser quad hub for high-speed sensors

MAX9263GCB

Maxim

TQFP-64

5000

HDCP Gigabit Multimedia Serial Link Serialiser/Deserialiser

DS90UB929TRGCRQ1

TI

VQFN-64

12000

720p HDMI to FPD-Link III Bridge Serialiser with HDCP

DS90UB935TRHBRQ1

TI

VQFN-32

3000

FPD-Link III 3Gbps Serialiser, VQFN-32

DS90UB914ATRHSRQ1

TI

WQFN-48

4000

25-100MHz 10/12-bit FPD-Link III Deserialiser

DS90UA101TRTVRQ1

TI

WQFN-32

3000

Automotive Multi-Channel Digital Audio Serialiser, WQFN-32

MAX96707GTG

Maxim

TQFN24

10000

1Mbps Serializer Inputs Outputs 24-TQFN (4x4)

MAX9282BGTM/V

Maxim

TQFN-48

2000

3.12Gbps GMSL Deserializers for Coax or STP Input and LVDS Output

MAX9286GTN/V

Maxim

TQFN-56

2000

Quad 1.5Gbps GMSL Deserializer with Coax or STP Input and CSI-2 Output

MAX9295DGTM/VY

Maxim

TQFN-48

5000

6Gbps Serializer 2-Input 1-Output 48-SWTQFN (7x7)
