The DS90UB953ATRHBRQ1 serialiser is part of TI's FPD-Link III device family and is designed to support high-speed raw data sensors, including 2.3MP/60fps imagers as well as 4MP/30fps cameras, satellite radar, LIDAR and time-of-flight (ToF) sensors. Fully compliant with AEC-Q100 (Class 1), the device has a wide temperature range of -40°C to 125°C. The higher temperature helps to make the device a perfect fit for any small form factor. The higher temperature helps provide a more compact/flexible sensor module design for any small camera application. The chip offers a 4.16Gbps forward channel and an ultra-low latency 50Mbps bidirectional control channel and supports a single coaxial (PoC) or STP cable for power. The device features advanced data protection and diagnostics to support ADAS and autonomous driving. In combination with a companion deserialiser, it provides accurate multi-camera sensor clocking and sensor synchronisation.

Product Attributes

Function: Serialiser

Data Rate: 4.16Gbps

Input Type: CSI-2, MIPI

Output Type: FPD Link III, LVDS

Number of Inputs: 4

Number of Outputs: 1

Voltage - Supply: 1.71V ~ 1.89V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount, Wettable Sides

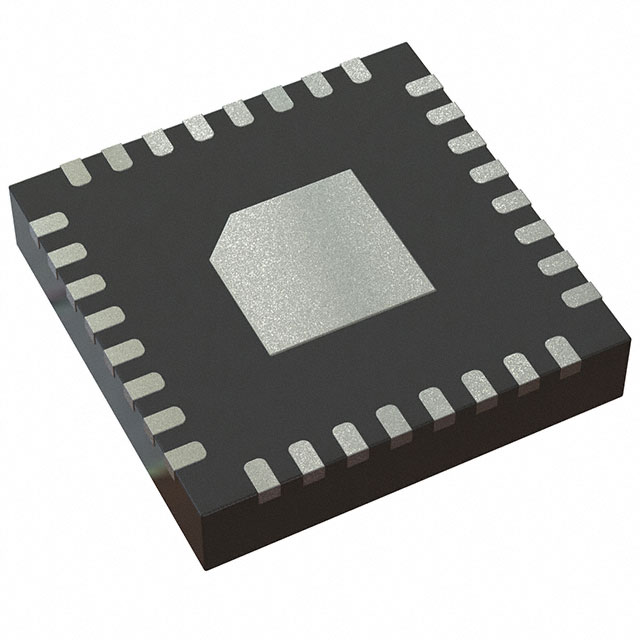

Package/Shell: 32-VFQFN Exposed Pad

Supplier Device Package: 32-VQFN (5x5)

Applications

- Advanced Driver Assistance Systems (ADAS)

- Surround View Systems ECUs

- Front and Rear Cameras

- Driver monitoring

- Radar ECUs

- Mechanical Scanning Lidar

- Time-of-flight (ToF) cameras

- Analogue security cameras

- MRI, ultrasound and X-ray systems

- Specialised imaging systems
