The LM74202QPWPRQ1 is a compact, feature-rich 40 V integrated ideal diode with a full suite of protection features. The wide supply input range controls 12 V automotive battery drive applications. The device withstands and protects loads load, source, and device protection. A variety of programmable features are available including overcurrent, inrush current control, overvoltage and undervoltage thresholds. A powerful internal protection control block and 40 V rating simplify system design for ISO standard pulse testing.

Product Attributes

Type: N+1 ORing Controller

FET Type: N-Channel

Ratio - Input:Output: 1:1

Internal Switch: Yes

Delay Time - On: 80 µs

Delay Time - Off: 9 µs

Current - Output (Max): 2.2A

Current - Supply: 285 µA

Voltage - Supply: 4.2V ~ 40V

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

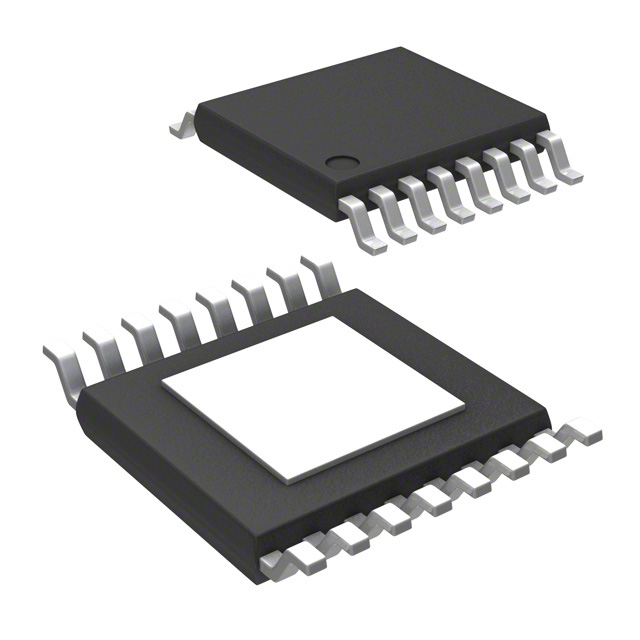

Package/Shell: 16-PowerTSSOP (0.173", 4.40mm Width)

Supplier Device Package: 16-HTSSOP

Applications

● Front camera, rear camera

● Driver assistance ECUs

● Telematics control units

● Asset tracking cellular modules
