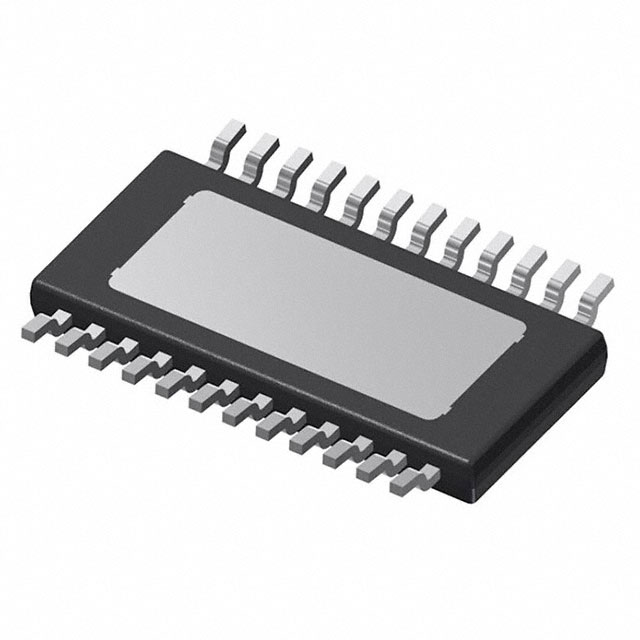

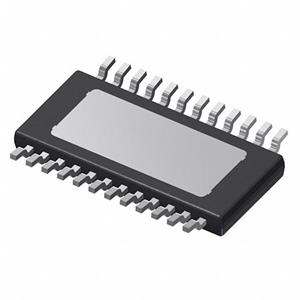

TLD700216ES is a 16 channel device with integrated and protected output stages. It is designed to control LEDs with a current up to 76.5 mA as linear current sink (LCS).

Features

16 channel device with integrated and protected output stages, optimized to drive LEDs

High regulated output current up to 76.5 mA per channel

Parallel output operation for higher load currents

16 independent 6-bit configurable global output current configurations ranging from 5.625 mA to 76.5 mA

16 independent 14-bit PWM engines from 100 Hz up to 2 kHz

Configurable thermal derating

Configurable LED Open, Short and Single-LED-Short thresholds

Digital feedback of external two voltage measurements (NTC/PTC)

Integrated HSLI transceiver, CAN-FD physical-layer compatible up to 2 MBit/s

Developed according to ISO26262 with process complying to ASIL-B

Applications

Open-drain LED driver with high-speed lighting interface (HSLI - UARToverCAN)

Automotive rear light functions such as tail, stop and sequential (dynamic) turn indicator

Animated light functions like “welcome/goodbye” functions

Interior lighting functions for ambient lighting (RGB color control), illumination and dash board lighting

LED panels for industrial applications and instrumentation
