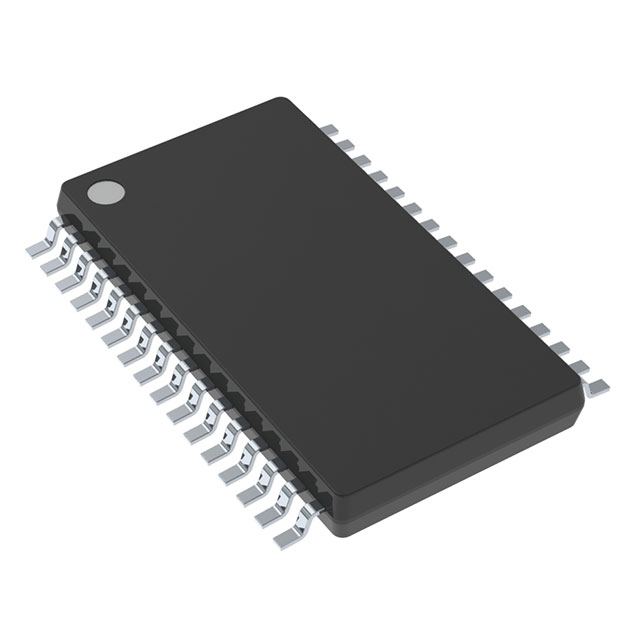

The TPS92682QDAPRQ1 is a dual-channel peak current mode controller with an SPI communication interface. The device can be programmed to operate in constant voltage (CV) or constant current (CC) mode.

Features

- Meets AEC-Q100 Level 1 standards

- Provides functional safety

- Documentation to aid in the design of functionally safe systems

- Wide input voltage range: 4.5V to 65V

- LED current accuracy of ±4% over -40°C to 150°C junction temperature range

- SPI Communication Interface

- SPI programmable feature:

- Improved EMI through spread spectrum

- Soft-start timing

- ILED current and output voltage settings

- Current Limit, Overvoltage, Fault Timer

- Single-phase and dual-phase

- CV and CC mode configurations

- Dual Peak Current Mode (PCM) Controller

- Low input distortion voltage rail-to-rail current sense amplifier

- Analogue dimming

- External series FET PWM dimming with integrated P-channel driver interface

- PWM dimming range in excess of 1000:1

- Open drain fault flag indicator per channel

- Programmable switching frequency up to 1MHz with external clock synchronisation

- Fully programmable fault protection circuitry

- Available in a wettable side VQFN package

Applications

- Automotive headlamp lighting

- Emergency vehicles

- General purpose lighting
