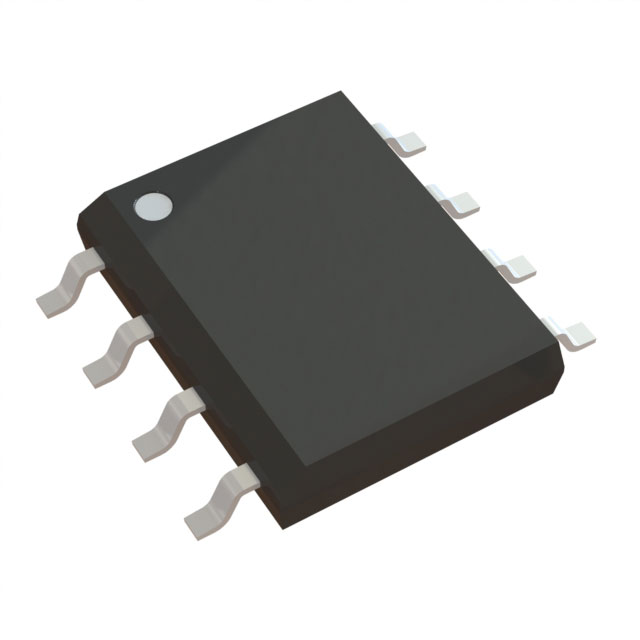

TLD5045EJ is a highly integrated smart LED buck controller with built in protection functions. The main function of this device is to drive single or multiple series connected LEDs efficiently from a voltage source higher than the LED forward voltage by regulating a constant LED current.

Features

Constant Current Generation

Wide Input Voltage Range from 5V to 40V

Peak Current Regulation

Very low current consumption (<2uA) in Sleep Mode

Integrated power transistor with low saturation voltage

Integrated fast freewheeling diode

Integrated load current sense resistor

Integrated status pull down transistor

Overtemperature Protection

Switching frequency adjustable via external RC network

External PWM Dimming Input

Integrated PWM Dimming Engine

Stable switching frequency due to fix OFF-time concept with VREC feedforward

Under- and Overvoltage shutdown with hysteresis

Small thermally enhanced exposed heatslug SMD package

Automotive AEC Qualified

Green Product (RoHS) Compliant

Applications

Automotive LED driven Exterior Lighting: Brake, Tail, CHMSL, Daytime Running Light,Position Light

Automotive LED driven Interior Lighting: Reading Light, Dome Light, Display Backlighting
