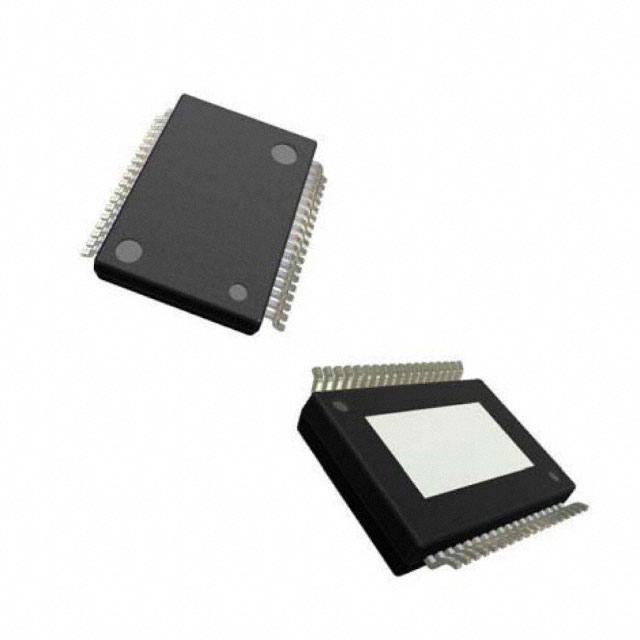

For picture reference, please see the specifications
< >

Commodity Model:VN7000AYTR

Trade Name:VN7000AYTR

Data Manual:VN7000AYTR.pdf

Brand:ST

Particular Year:23+

Package:36-PowerFSOP

Delivery Date:New original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
VN7000AYTR
Package
36-PowerFSOP
Describe
Current Sense Regulator High-Side

Product Description

VN7000AYTR device is a single channel high-side driver manufactured using ST proprietary VIPower® M0-7 technology and housed in PowerSSO-36 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOScompatible interface, providing protection and diagnostics.


Features

AEC-Q100 qualified

Extreme low voltage operation for deep cold cranking applications

Single channel smart high-side driver

Very low standby current

Compatible with 3 V and 5 V CMOS outputs

MultiSense diagnostic functions

Multiplexed analog feedback of: load current, VCC supply voltage and TCHIP device temperature

Overload and short to ground indication

Thermal shutdown indication

OFF-state open-load detection

Output short to VCC detection

Sense enable/disable

Undervoltage shutdown

Overvoltage clamp

Load current limitation

Latch-off on over-temperature

Loss of ground and loss of VCC

Reverse battery with self switch of the PowerMOS

Electrostatic discharge protection


Applications

All types of Automotive resistive, inductive and capacitive loads

Especially intended for Automotive power distribution applications
