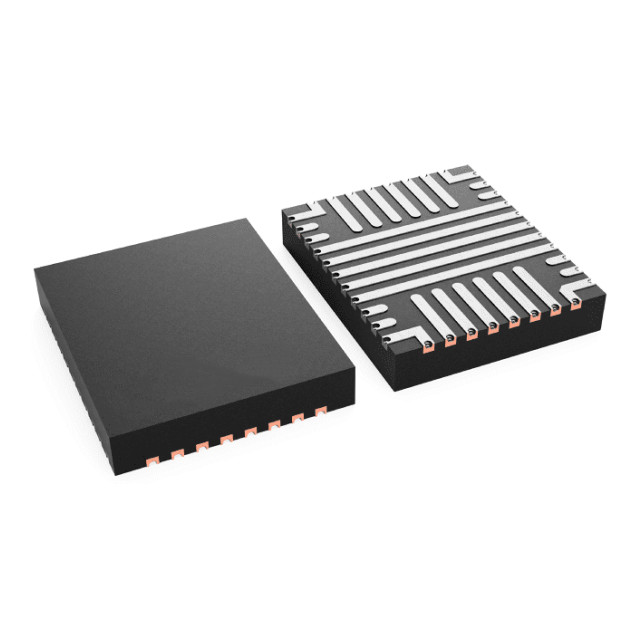

TPS259823ONRGER is a highly integrated circuit protection and power management solution in a small package.

Features

Wide input voltage range: 2.7 V to 24 V

30V Absolute maximum

Low On-Resistance: RON = 2.7-mΩ typical

Adjustable current limit threshold

Range: 2 A to 15 A

Accuracy: ± 8% (typical for ILIM > 5 A)

Circuit breaker and current limiter options

Adjustable over-current blanking timer

Handles load transients without tripping

Accurate current monitor output

User configurable fault response

Latch-off or auto-retry

Number of retries (Finite or indefinite)

Delay between retries

Robust short-circuit protection

Fast-trip response time < 400-ns typical

Tested against 1 million power-into-shortevents

Immune to line transients - no nuisancetripping

Adjustable output slew rate (dVdt) control

Adjustable undervoltage lockout

Overvoltage lockout

Integrated overtemperature protection

Power good indication

Adjustable load detect and handshake timer

Applications

Hot-Swap, hot-plug

Server standby rail, PCIe riser, add-on card and fan module protection

Routers and switches optical module protection

Industrial PC

Digital TV
