The MAX20314EWC adjustable current-limiting switch is a programmable device with an internal current-limiting function, which can protect the host components from load failures. This current-limiting switch has a low on-resistance of 10mΩ (typical value) and operates within the input voltage range of +2.5V to +5.5V. The current-limiting adjustable range of MAX20314EWC is from 500mA to 6A, making it highly suitable for charging high-load capacitors and high-current load switching applications.

Features

The MAX20314EWC offers reliable protection:

Adjustable current limiting (500mA to 6A)

Overload current limiting (2A to 6A) accuracy: ±5%

Current monitor

Low RON: 10mΩ (typical value)

Reverse current protection

Short-circuit protection

Thermal shut-off protection

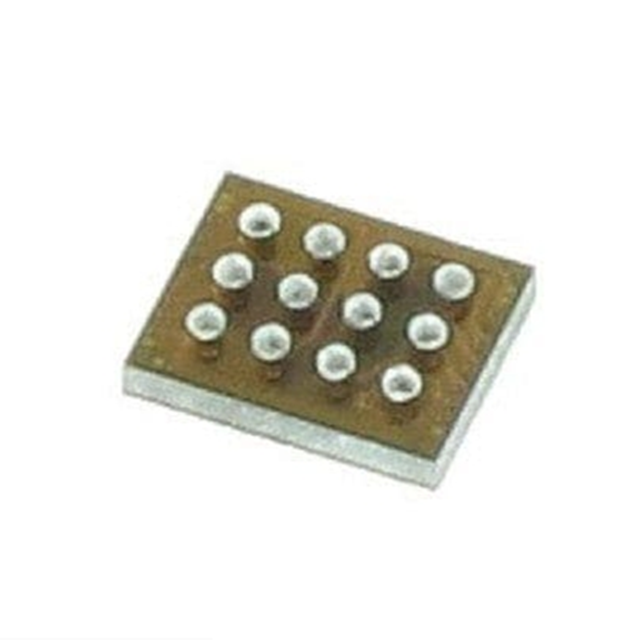

12-pin, 0.4mm pitch, 1.68mm x 1.48mm WLP package

Application field

The MAX20314EWC is suitable for a variety of application fields, including:

Data modem card

Portable media player

RF power amplifier in mobile phones

SDXC card power protection

USB port

UTCA/ATCA platform
