The MAX20333MENL device is a tunable current-limiting switch with low power mode ‌, extending operating range up to 22V, with tunable current-limiting mode, providing a highly versatile solution ‌. The MAX20333MENL adjustable current-limiting switch offers three operating modes: normal mode (NM), high current mode (HCM), and low power mode (LPM).

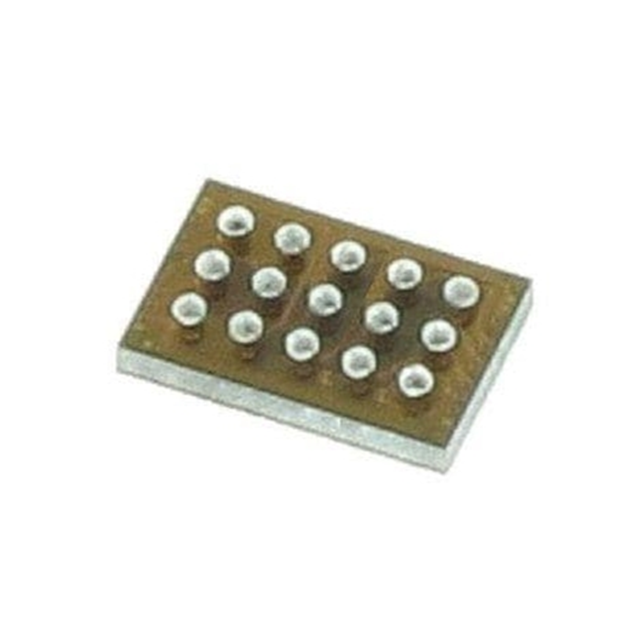

The MAX20333MENL can respond in three different ways under the current limitations: automatic retry, latch, and continuous. This switch adopts a 15-pin (2.1mm x 1.52mm) WLP package and can operate within an extended temperature range from -40°C to +85°C.

Features

The main features of MAX20333MENL are as follows:

Flexible operation

Wide range of programmable current-limiting values (0.2A to 4.75A)

Wide operating range: 3.3V to 22V

Three different current-limiting modes: NM, HCM, and LPM

There are three different types of restrictions: automatic retry, lockout, and continuous

Good power input

Current monitor

Safe operation

Precision current limiting

Output short-circuit protection

Thermal protection

Logo output

UL 2367 Certification - Document Number E211395

Only for MAX20333/A/F/G

Maximum 4.9A/100W

Power-saving function

Low Power Mode (LPM) with output short-circuit protection

Wide range of application fields

The MAX20333MENL adjustable current-limiting switch is suitable for circuit designs that require current limiting protection, especially excelling in scenarios where it prevents damage to the host equipment during load failures.
