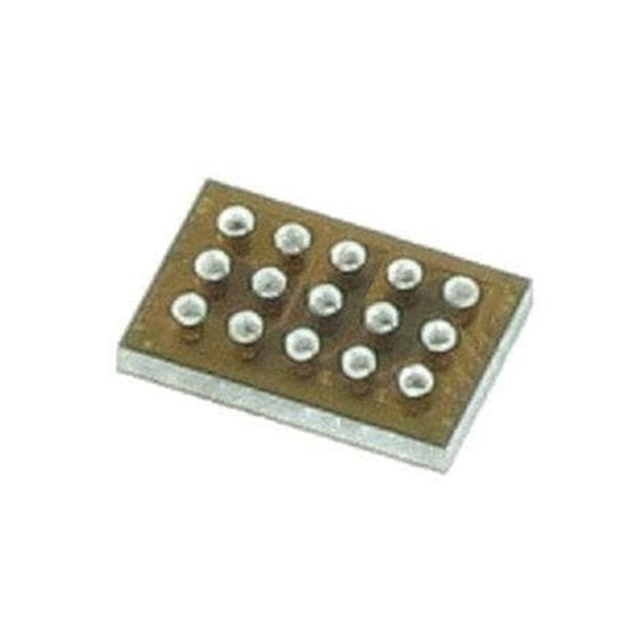

MAX20333GENL is a programmable current-limiting switch with multiple features and operating modes ‌. It has an internal current-limiting function, which can prevent the host equipment from being damaged due to incorrect load conditions.

The MAX20333 series features three operating modes: Normal Mode (NM), High current Mode (HCM), and Low Power Mode (LPM). In NM, this device provides programmable current-limiting protection ranging from 0.2A to 4.75A. In the high current mode (HCM), the current-limiting threshold is multiplied by 2, and the internal upper limit is set at 5.5A. In Low Power consumption mode (LPM), the current consumption of this device is significantly reduced, with an on-resistance of 420mΩ (typical value), while still providing overcurrent protection.

Application scenarios

The MAX20333GENL is suitable for a variety of applications that require current limiting, including:

Battery disconnection switch

Universal power switch

USB port protection switch

Its flexible working mode and wide range of programmable current limits provide reliable current protection under all load conditions ‌.

In addition, the MAX20333GENL also features the following characteristics:

Flexible working mode

Wide-range programmable current limit (0.2A to 4.75A)

Wide operating voltage range: 3.5V to 22V

Three different current-limiting modes: NM, HCM, and LPM

There are three different types of restrictions: automatic retry, lockout, and continuous

Good power input

Current monitoring

Safe operation

Precise current limit

Output short-circuit protection

Thermal protection

Logo output

Energy conservation

Low Power Mode (LPM) with output short-circuit protection
