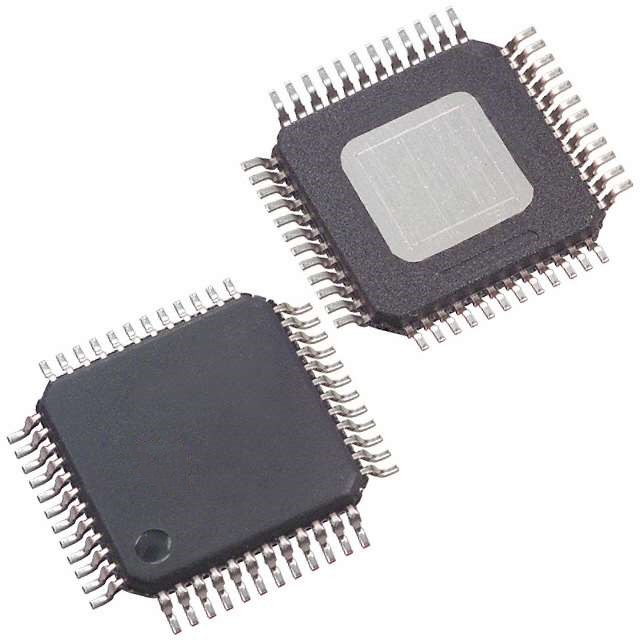

The DRV8340HPHPRQ1 device is an integrated gate driver for three-phase applications. The device features three half-bridge gate drivers, each capable of driving both high-side and low-side N-channel power MOSFETs, with dedicated source and drain pins to support independent MOSFET control for solenoid valve applications. The device uses an integrated charge pump to generate sufficient gate drive voltage for the high-side MOSFET and a linear regulator to generate sufficient gate drive voltage for the low-side MOSFET. This smart gate drive architecture supports peak gate drive pull currents up to 1A and peak gate drive sink currents up to 2A. The DRV8340HPHPRQ1 can be powered from a single supply and supports a wide input supply voltage range of 5.5 to 60V for gate drivers.

Features

- Automotive-oriented standard compliance

- Temperature class 1: -40°C ≤ TA ≤ 125°C

- 3 independent half-bridge gate drivers

- Dedicated source (SHx) and drain (DLx) pins support independent MOSFET control

- Drives 3 high-side and 3 low-side N-channel MOSFETs (NMOS)

- Intelligent gate drive architecture

- Adjustable slew rate control

- 1.5mA to 1A peak source current

- 3mA to 2A peak sink current

- Gate driver charge pump with 100% duty cycle support

- SPI (S) and hardware (H) interfaces available

- 6x, 3x, 1x, and independent PWM modes

- Supports 3.3V and 5V logic inputs

- Charge pump output drives reverse power protected MOSFETs

- 3.3V, 30mA Linear Regulator

- Integrated Protection Features

- VM Undervoltage Lockout (UVLO)

- Charge Pump Undervoltage (CPUV)

- Battery Short Circuit (SHT_BAT)

- Shorted Ground (SHT_GND)

- MOSFET overcurrent protection (OCP)

- GATE DRIVER FAILURE (GDF)

- Thermal warning and thermal shutdown (OTW/OTSD)

- Fault status indicator (nFAULT)

Applications

- 12V and 24V automotive motor control applications

- BLDC and BDC Motor Modules

- Fans and blowers

- Fuel and water pumps

- Solenoid Valve Drivers
